New Holland TI4.65

The New Holland TI4.65 is a tractor produced by New Holland. It is equipped with a 127.1 ci 2.1 L engine. The listed engine power is Diesel (gross): 65.2 hp / 48.6 kW. Transmission: 12 forward and 4 reverse. Drive type: 4x4 4WD. Operating weight: 3902 to 4079 pounds.

Engine Power

Diesel (gross): 65.2 hp / 48.6 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

13.2 gal 50.0 L

Transmission

12 forward and 4 reverse

Operating Weight

3902 to 4079 pounds

Overview

	2014 - 2017 TI4 SeriesOrchard/Vineyard tractorGoldoni built TI4 Series Orchard/Vineyard tractor Goldoni built

Production
Distributor	New Holland (a part of CNH)
Manufacturer	Goldoni
Orchard/Vineyard tractor
Built in Italy

New Holland TI4.65 Engine
VM Motori 2.1L 3-cyl diesel
Fuel tank	13.2 gal 50.0 L
Engine details ...

New Holland TI4.65 Power
Engine (gross)	65.2 hp 48.6 kW

Mechanical
Drive	4x4 4WD
Final drives	mechanical front and rear
Hydraulic wet disc brakes
Two-post folding mid-mount ROPS.

Hydraulics
Valves	2
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear Type	I/IN
Rear lift	3968 lbs 1799 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540 (1.375)

Dimensions & Tires
Weight	3902 to 4079 pounds
Front tire	280/70-18
Rear tire	280/70-18
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

TI4 published in 2014, by New Holland

Engine

Engine Detail — 127.1 ci / 2.1 L Diesel

Manufacturer	VM Motori D703
Configuration	turbocharged intercooled diesel, 3-cylinder, liquid-cooled inline
Displacement	127.1 ci 2.1 L
Bore/Stroke	3.70x3.94 inches 94 x 100 mm
Emissions	Stage 3A
Rated Power (gross)	65.2 hp 48.6 kW
Fuel system	direct injection
Rated RPM	2600
Starter type	electric

Transmission

Transmission options
16-speed
12-speed

Transmission — 16 forward and reverse

Gears	16 forward and reverse
Clutch	280mm dry disc

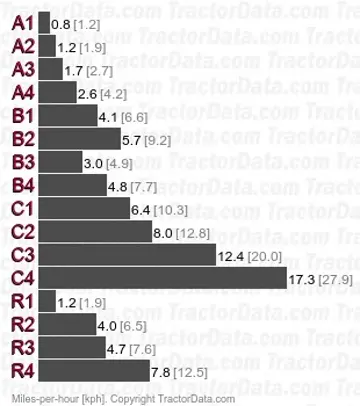

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	280mm dry disc

Dimensions

New Holland TI4.65 Tires
Standard tires (ag)	Front: 280/70-18. Rear: 280/70-18
Optional tires (ag)	Front: 300/65-18. Rear: 300/65-18

Dimensions
Length	115.4 inches (rigid/articulated) 293 cm
	122.4 inches (bidrive) 310 cm
Width	52.8 inches (rigid/bidrive) 134 cm
	45.7 inches (articulated) 116 cm
Ground clearance	11.6 inches (ridig/bidrive) 29 cm
	11 inches (articulated) 27 cm
Front tread	41.7 to 59.8 inches 105 to 151 cm (rigid/bidrive)
Front tread	34.7 to 50.4 inches 88 to 128 cm (articulated)
Rear tread	41.7 to 59.8 inches 105 to 151 cm (rigid/bidrive)
Rear tread	34.7 to 50.4 inches 88 to 128 cm (articulated)

New Holland TI4.65 Weight
	3946 lbs (rigid) 1789 kg
	3902 lbs (articulated) 1769 kg
	4079 lbs (bidrive) 1850 kg

New Holland TI4.65 Height
Steering wheel	48 inches (rigid/bidrive) 121 cm
	46.7 inches (articulated) 118 cm
ROPS	83.1 inches 211 cm

Photos

New Holland TI4.65 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland TI4.65 based on its 65.2 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland TI4.65.

Estimated Continuous Field Runtime: 3.9 hrs

Approximately 3.9 hours of continuous field operation at ~75% rated power on a full tank (13.2 gal / 50 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
