New Holland TL70

The New Holland TL70 is a tractor produced by New Holland. It is equipped with a 220 ci 3.6 L engine. The rated power output is 65 hp 48.5 kW. Transmission: 24 forward and 12 reverse. Operating weight: 5952 to 8245 pounds.

Overview

	1999 - 2001 TL SeriesUtility tractor
1999 - 2001
TL Series
Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Jesi, Italy

New Holland TL70 Engine
Iveco 3.6L 4-cyl diesel
Fuel tank	29 gal 109.8 L
Engine details ...

New Holland TL70 Transmission
24-speed
Transmission details ...

New Holland TL70 Power
Engine	65 hp 48.5 kW
PTO (claimed)	56 hp 41.8 kW
Drawbar (tested)	36.5 hp 27.2 kW
PTO (tested)	58.9 hp 43.9 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Differential hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	closed center
Valves	2 or 3
Pump flow	14.5 gpm 54.9 lpm

Tractor hitch
Rear Type	II
Rear lift	6550 lbs 2971 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	92.2 inches (2WD) 234 cm
	91.1 inches (4WD) 231 cm
Weight	5952 to 8245 pounds
Front tire	10.00-16
2WD Rear tire	13.6R-36
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Operator's Manual TL70, TL80, TL90 and TL100 Tractors (6036457100) published in 2002

Engine

Engine Detail — 220 ci / 3.6 L Diesel

Manufacturer	Iveco 8045
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	220 ci 3.6 L
Bore/Stroke	3.937x4.528 inches 100 x 115 mm
Power	65 hp 48.5 kW
Air cleaner	dual paper elements
Compression	16.5:1
Rated RPM	2500
Starter volts	12

Transmission

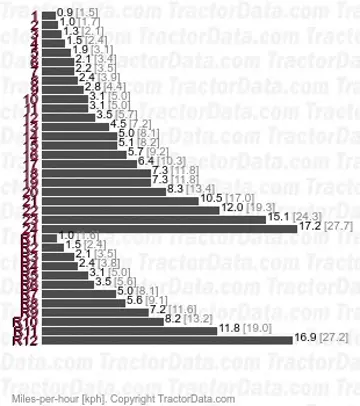

Transmission — 24 forward and 12 reverse

Gears	24 forward and 12 reverse
Clutch	dual dry disc

Dimensions

New Holland TL70 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 13.6R-36
4WD Standard tires (ag)	Front: 12.4R-24. Rear: 13.6R-36

Dimensions
Wheelbase	92.2 inches (2WD) 234 cm
	91.1 inches (4WD) 231 cm
2WD Length	154 inches 391 cm
4WD Length	160.1 inches 406 cm
Height (cab)	109.7 inches 278 cm
Clearance (front axle)	11.8 inches 29 cm
Front tread	55.2 to 85.4 inches 140 to 216 cm
Rear tread	55.9 to 86.8 inches 141 to 220 cm

New Holland TL70 Weight
2WD ROPS Shipping	5952 lbs 2699 kg
4WD ROPS Shipping	6812 lbs 3089 kg
2WD Cab Shipping	6393 lbs 2899 kg
4WD Cab Shipping	7055 lbs 3200 kg
2WD Operating	7660 lbs 3474 kg
4WD Operating	8245 lbs 3739 kg
Ballasted	9900 lbs 4490 kg

Tests

OCED Tractor Test 1913
Diesel 24-speed 4WD April 1999 - December 1999, Link: OCED Tractor Test 1913 file
PTO performance
Power at rated engine speed	58.9 hp 43.9 kW
Fuel use	3.7 gal/hour 14.0 l/hour
Power at rated PTO speed	56.5 hp 42.1 kW
Fuel use	3.4 gal/hour 12.9 l/hour
Drawbar performance
Max power	36.5 hp 27.2 kW
Fuel use	3.0 gal/hour 11.4 l/hour
Gear 3M Lo used for power test.
Max pull	9,065 lbs 4111 kg
Gear 3S Lo used for pull test.

Photos

New Holland TL70 in Fiatagri colors with loader.

Rear of New Holland TL70 showing hitch.
