new holland lawn tractors s 14
 | 1970 - 1973
Garden tractor | 1970 - 1973 | Garden tractor |
|---|---|---|---|
1970 - 1973 | |||
Garden tractor | |||
1970 - 1973 | |
|---|---|
Garden tractor |
Production | |
|---|---|
Manufacturer | New Holland (a part of Sperry) |
Garden tractor | |
Built in Belleville, Pennsylvania, USA | |
Original price was $1,825 in 1973 | |
New Holland S-14 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Fuel tank | 4.75 gal
18.0 L |
Engine details ...  | |
New Holland S-14 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Steering | manual |
Parking prawl brakes | |
Open operator station. Vinyl weather cab optional. | |

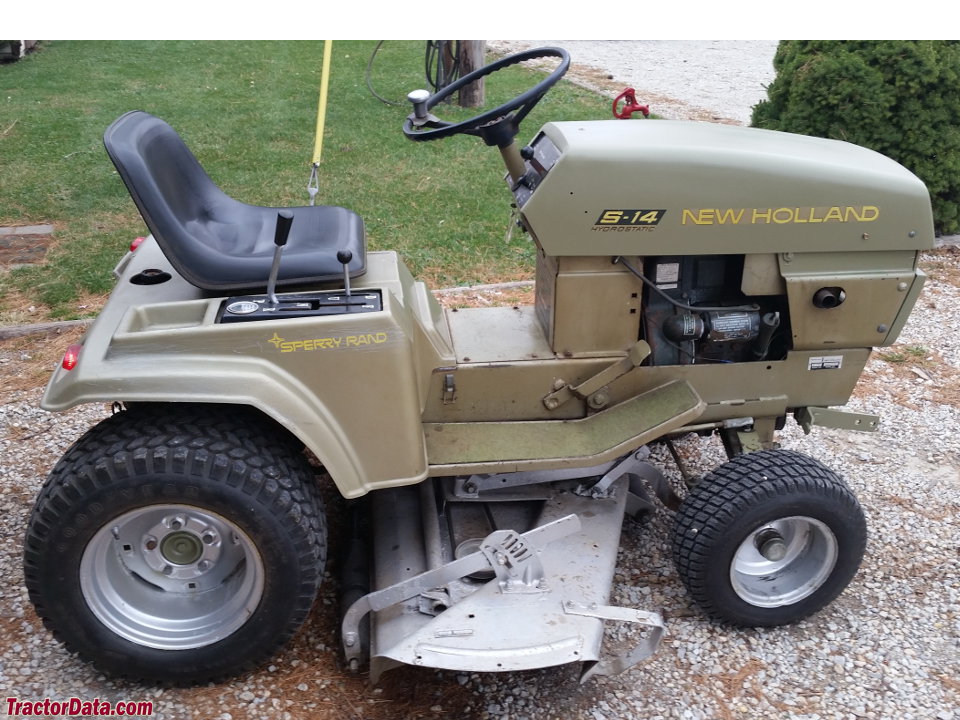

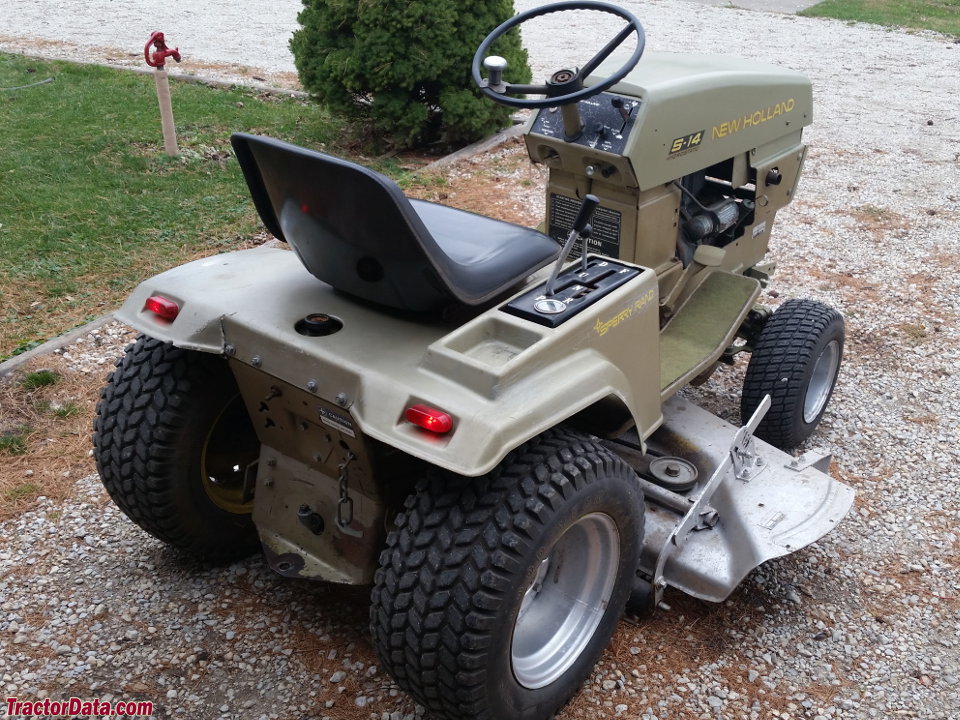

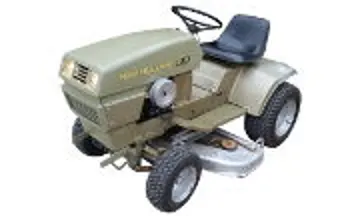

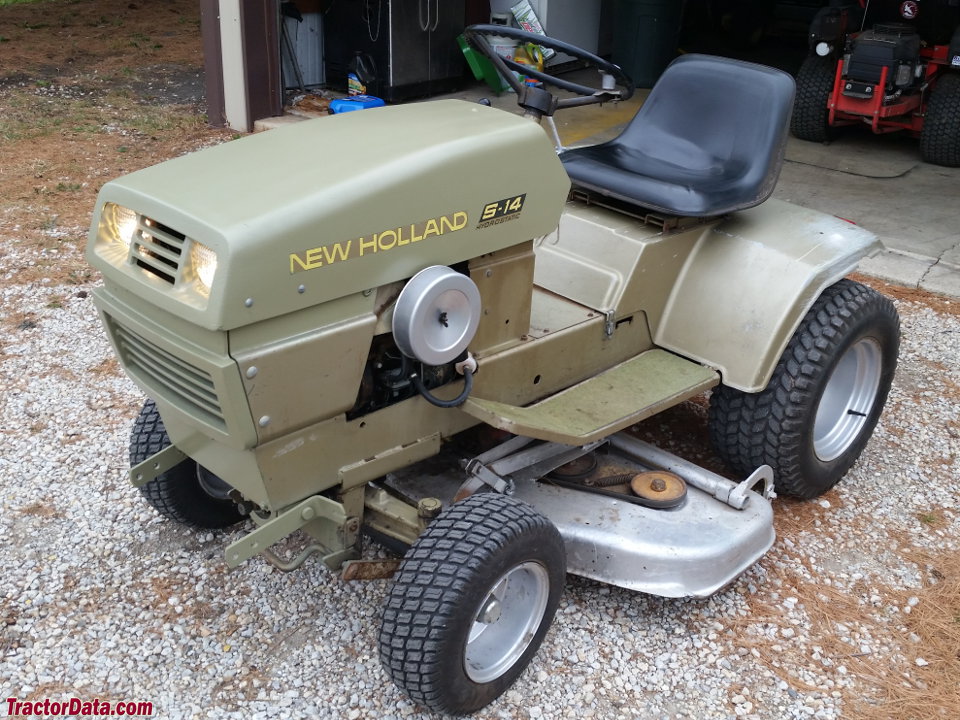

Photos | |
|---|---|
 | |
New Holland S-14 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Rear PTO | Optional |
Rear PTO Type | 3600 |
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 770 lbs
349 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
New Holland S-14 attachments | |
|---|---|
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |

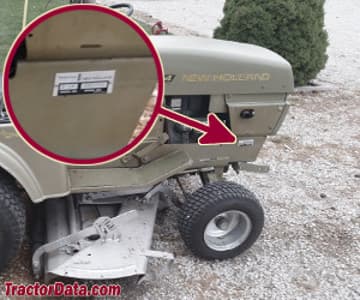

S-14 Serial Number Location | |
|---|---|
 | |
Serial number plate on the front right of the tractor frame, above the front axle. |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 35 |
References | |
|---|---|
 | |
Lawn & Garden Tractors published in 1972, by New Holland | |
Operator's Manual Garden Tractor S-12 S-14 S-16 (42001232) published in 1972 |
