New Idea R36
The New Idea R36 is a tractor produced by New Idea Lawn Tractors. Transmission: 5 forward and 1 reverse. Drive type: electric. Operating weight: 452 lbs*Weight with mower deck. 205 kg.
Drive & Traction
electric
Transmission
5 forward and 1 reverse
Operating Weight
452 lbs*Weight with mower deck.
205 kg
Overview
 | 1975
Riding lawn mowerWheel Horse built
Riding lawn mower
Wheel Horse built |
|---|
Production | |
|---|---|
Distributor | New Idea |
Manufacturer | Wheel Horse |
Riding lawn mower | |
Built in South Bend, Indiana, USA | |
New Idea R36 Engine | |
|---|---|
electric | |
Engine details ...  |
New Idea R36 Transmission | |
|---|---|
5-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 452 lbs
205 kg |
Front tire | 11x4.00-5 |
Rear tire | 13x5.00-6 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Electric Riding Mower published in 1975, by New Idea |
Engine
Manufacturer | electric |
|---|
Transmission
Transmission — 5 forward and 1 reverse
Gears | 5 forward and 1 reverse |
Dimensions
New Idea R36 Tires | |
|---|---|
Lawn/turf front | 11x4.00-5 |
Lawn/turf rear | 13x5.00-6 |
Dimensions | |
|---|---|
Length | 61.5 inches
156 cm |
Width | 34.25 inches
86 cm |
Height | 39 inches
99 cm |
Weight | 452 lbs*Weight with mower deck.
205 kg |
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount New Idea |
2-blade | |
Cutting width | 36 inches
91 cm |
Drive | electric |
Overall width | 47.75 inches
121 cm |
Photos

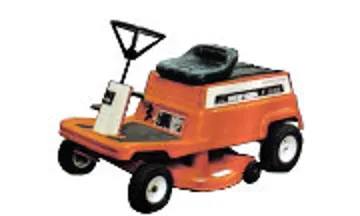

New Idea R36 tractor photo
