Nichols-Shepard 35-70
The Nichols-Shepard 35-70 is a tractor produced by Nichols Shepard. It is equipped with a 2425 ci 39.7 L engine. Transmission: 1 forward and reverse. Operating weight: 30000 lbs 13608 kg.
Fuel & Capacities
40 gal
151.4 L
Transmission
1 forward and reverse
Operating Weight
30000 lbs
13608 kg
Overview
 | 1913 - 1920
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Nichols-Shepard |
Standard-tread tractor | |
Built in Battle Creek, Michigan, USA | |
Nichols-Shepard 35-70 Engine | |
|---|---|
Nichols & Shepard 39.7L 2-cyl kerosene | |
Fuel tank | 40 gal
151.4 L |
Aux. fuel | 6 gal
22.7 L |
Engine details ...  | |
Nichols-Shepard 35-70 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Nichols-Shepard 35-70 Power | |
|---|---|
Drawbar (claimed) | 70 hp
52.2 kW |
Belt (claimed) | 35 hp
26.1 kW |
Plows | 10 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | bull gear |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 30000 lbs
13608 kg |
Front tire | 48x12 |
Rear tire | 73x32 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 30 inches
76 cm |
Width | 12 inches
30 cm |
RPM | 375 |
References | |
|---|---|
 | |
Threshing Machinery published in 1916, by Nichols-Shepard | |
Threshing Machinery Makes Good published in 1918, by Nichols-Shepard | |
Red River Special Line published in 1922, by Nichols-Shepard | |
Threshing Machinery Exclusively. published in 1924, by Nichols-Shepard | |
Oil-Gas Tractors published by Nichols-Shepard |
Engine
Engine Detail — 2425 ci / 39.7 L Kerosene
Manufacturer | Nichols & Shepard |
Fuel Type | Kerosene |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 2425 ci
39.7 L |
Bore/Stroke | 10.50x14.00 inches
267 x 356 mm |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Clutch | dry drum |
 | |
Dimensions
Nichols-Shepard 35-70 Tires | |
|---|---|
Ag front | 48x12 steel |
Ag rear | 73x32 steel |
Dimensions | |
|---|---|
Length | 222 inches
563 cm |
Width | 134 inches
340 cm |
Height | 124 inches
314 cm |
Weight | 30000 lbs
13608 kg |
Rear axle | 5.5 inch diameter
139 mm |
Photos

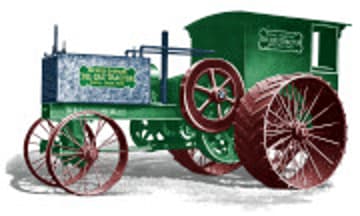

Nichols-Shepard 35-70 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Nichols Shepard Nichols-Shepard 35-70.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
