Oliver 2655

The Oliver 2655 is a tractor produced by Oliver. It is equipped with a 504 ci 8.3 L engine. The listed engine power is Diesel (listed): 169 hp / 126.0 kW; LP gas (listed): 169 hp / 126.0 kW. Transmission: 10 forward and 2 reverse. Operating weight: 19850 lbs 9003 kg.

Overview

	1970 - 1972 Four-wheel Drive (4WD) tractor

Series map: 24552655139.0hp169.0hp

Note: the Oliver model 2655 is the same as the Minneapolis-Moline A4T-1600. The following data is from the A4T-1600 listing.

Production
Manufacturer	Oliver
Four-wheel Drive (4WD) tractor
Built in Minneapolis, Minnesota, USA

Oliver 2655 Transmission
10-speed
Transmission details ...

Oliver 2655 Power
Engine	169 hp 126.0 kW
Drawbar (claimed)	123 hp 91.7 kW
PTO (claimed)	143 hp 106.6 kW
Drawbar (tested)	123.3 hp 91.9 kW
PTO (tested)	143.27 hp 106.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Hydraulic dry disc brakes
Open operator station. Cab optional with heat.

Capacity
Diesel Fuel	100 gal 378.5 L
LP-gas Fuel	88 gal 333.1 L
Hydraulic system	8 gal 30.3 L

Hydraulics
Type	open center
	closed center OptOptional
Capacity	8 gal 30.3 L
Pressure	1750 psi (open) 120.7 bar
	2000 psi (closed) 137.9 bar
Valves	2 or 3
Pump flow	17 gpm (open) 64.3 lpm
	20 gpm (closed) 75.7 lpm

Tractor hitch
Rear Type	III/II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
Engine RPM	1000@1800

Dimensions & Tires
Wheelbase	120 inches 304 cm
Weight	19850 lbs 9003 kg
Front tire	18.4-34
Rear tire	18.4-34
Full dimensions and tires ...

References
2455/2655 published in 1970, by Oliver
Articulated 4-Wheel Drive 2655 published in 1971, by Oliver

Engine

Series map: 24552655139.0hp169.0hp

Note: the Oliver model 2655 is the same as the Minneapolis-Moline A4T-1600. The following data is from the A4T-1600 listing.

Engine options
Minneapolis-Moline 9.6L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas

Engine Detail — 585 ci / 9.6 L Diesel

Manufacturer	Minneapolis-Moline
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	585 ci 9.6 L
Bore/Stroke	4.75x5.50 inches 121 x 140 mm
Power	169 hp 126.0 kW
Air cleaner	dual paper elements
Compression	15.3:1
Rated RPM	2200
Starter volts	12
Oil capacity	14 qts 13.2 L
Coolant capacity	33 qts 31.2 L

Engine Detail — 504 ci / 8.3 L LP Gas

Manufacturer	Minneapolis-Moline
Fuel Type	LP gas
Configuration	6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	169 hp 126.0 kW
Rated RPM	2200
Starter volts	12
Oil capacity	13 qts 12.3 L
Coolant capacity	30 qts 28.4 L

Transmission

Series map: 24552655139.0hp169.0hp

Note: the Oliver model 2655 is the same as the Minneapolis-Moline A4T-1600. The following data is from the A4T-1600 listing.

Transmission — 10 forward and 2 reverse

Gears	10 forward and 2 reverse
Clutch	355.6mm dry disc
Five gears (1-5) in two ranges (low/high).

Dimensions

Series map: 24552655139.0hp169.0hp

Note: the Oliver model 2655 is the same as the Minneapolis-Moline A4T-1600. The following data is from the A4T-1600 listing.

Oliver 2655 Tires
Ag front	18.4-34
Ag rear	18.4-34
Ag front	23.1-30
	24.5-32
	23.1-34
	18.4-38
Ag rear	23.1-30
	24.5-32
	23.1-34
	18.4-38

Dimensions
Wheelbase	120 inches 304 cm
Length	234 inches 594 cm
Width	96 inches 243 cm
Height (steering wheel)	99 inches 251 cm
Height (exhaust)	116 inches 294 cm
Operating weight	19850 lbs 9003 kg
Rear axle	3.25 inch diameter 82 mm

Tests

Series map: 24552655139.0hp169.0hp

Note: the Oliver model 2655 is the same as the Minneapolis-Moline A4T-1600. The following data is from the A4T-1600 listing.

Nebraska Tractor Test 1070
Diesel 10-speed 4WD May 24 - June 4, 1971 Link: Nebraska Tractor Test 1070 file
PTO performance
Power at rated engine speed	143.27 hp 106.8 kW
Fuel use	10.1 gal/hour 38.2 l/hour
Power at rated PTO speed	125.38 hp 93.5 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	123.3 hp 91.9 kW
Fuel use	9.8 gal/hour 37.1 l/hour
Gear 3L used for power test.
Max pull	18,236 lbs 8271 kg
Gear 1L used for pull test.

Photos

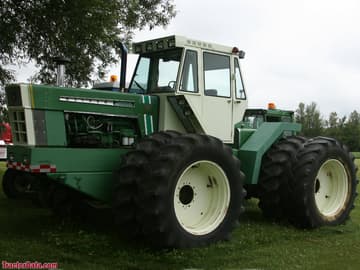

Oliver 2655
