oliver g955
 | Row-Crop tractor | Row-Crop tractor |
|---|---|---|
Row-Crop tractor | ||
Row-Crop tractor |
|---|
Series map: G955G1355107.8hp*163.3hp**Estimated engine power for comparison only.
Note: the Oliver model G955 is the same as the Minneapolis-Moline G955. The following data is from the G955 listing. |
|---|
Production | |
|---|---|
Manufacturer | Oliver (a part of White) |
Row-Crop tractor | |
Original price was $13,700 in 1974 | |
Oliver G955 Engines | |
|---|---|
Minneapolis-Moline 7.4L 6-cyl diesel | |
Minneapolis-Moline 7.0L 6-cyl LP-gas | |
Engine details ...  |
Oliver G955 Transmissions | |
|---|---|
6-speed gear | |

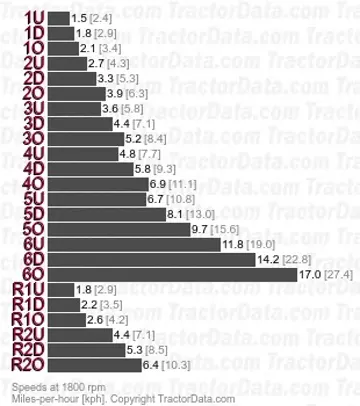

18-speed three-range power shift | |
Transmission details ...  |
Oliver G955 Power | |
|---|---|
Drawbar (claimed) | 80 hp
59.7 kW |
Diesel PTO (claimed) | 97 hp
72.3 kW |
LP-gas PTO (claimed) | 92 hp
68.6 kW |
Drawbar (tested) | 80.19 hp
59.8 kW |
PTO (tested) | 98.8 hp
73.7 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Disc brakes | |
Open operator station. Cab optional. |
Photos | |
|---|---|
 | |
Oliver G955 photos...  |
Capacity | |
|---|---|
Fuel | 40 gal (diesel)
151.4 L |
| 39 gal (LP-Gas)
147.6 L |
Hydraulic system | 6.8 gal
25.7 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 6.8 gal
25.7 L |
Pump flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 (1.375) |
Dimensions & Tires | |
|---|---|
Wheelbase | 111 inches
281 cm |
Weight | 11900 lbs
5397 kg |
Front tire | 10.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
G955 Serial Number Location | |
|---|---|
 | |
Serial number plate below the instrument panel, behind the clutch pedal. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
