Oliver 75
The Oliver 75 is a tractor produced by Oliver Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse.
Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Overview
 | 1972 - 1973
Lawn tractorJacobsen built
Lawn tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Oliver |
Manufacturer | Jacobsen |
Lawn tractor | |
Original price | $760 (1972) |
Oliver 75 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Engine details ...  |
Oliver 75 Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 275 cc / 16.79 ci Gasoline
Manufacturer | Briggs & Stratton 170707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 275 cc
16.79 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power | 7 hp
5.2 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse
Gears | 3 forward and 1 reverse |
Dimensions
Oliver 75 Tires |
|---|
Dimensions |
|---|
Attachments
34" Mower deck | |
|---|---|
Type | mid-mount Oliver |
manual lift | |
Cutting width | 34 inches
86 cm |
Photos

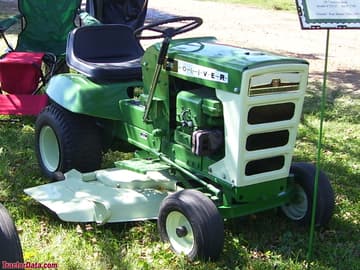

Oliver 75
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Oliver Lawn Tractors Oliver 75.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Oliver Lawn Tractors Oliver 75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Oliver Lawn Tractors Oliver 75.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
