Renault 145-14 TX
The Renault 145-14 TX is a tractor produced by Renault. It is equipped with a 380.4 ci 6.2 L engine. The rated power output is 132.8 hp 99.0 kW. Transmission: 16 forward and reverse. Operating weight: 13360 lbs 6060 kg.
Engine Power
132.8 hp
99.0 kW
Fuel & Capacities
52.8 gal
199.8 L
Transmission
16 forward and reverse
Operating Weight
13360 lbs
6060 kg
Renault 145-14 TX Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1981 - 1986
TX SeriesRow-Crop tractor |
|---|---|
1981 - 1986 | |
TX Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Renault |
Row-Crop tractor | |
Renault 145-14 TX Engine | |
|---|---|
MWM 6.2L 6-cyl diesel | |
Fuel tank | 52.8 gal
199.8 L |
Engine details ...  | |
Renault 145-14 TX Power | |
|---|---|
Engine | 132.8 hp
99.0 kW |
PTO (claimed) | 127.5 hp
95.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic dry disc brakes | |
Cab standard with heat. |
Hydraulics | |
|---|---|
Pressure | 2611 psi
180.0 bar |
Total flow | 11 gpm
41.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 11668 lbs
5292 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | cerametallic |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 644@2350 |
1105@2350 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Weight | 13360 lbs
6060 kg |
Front tire | 16.9-28 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging amps | 70 |
Batteries | 2 |
Battery volts | 12 |
Battery AH | 150 |
References | |
|---|---|
 | |
Renault Serie TX |
Engine
Engine Detail — 380.4 ci / 6.2 L Diesel
Manufacturer | MWM TD228-6 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 380.4 ci
6.2 L |
Bore/Stroke | 4.134x4.724 inches
105 x 120 mm |
Power | 132.8 hp
99.0 kW |
Air cleaner | dry |
Rated RPM | 2350 |
Torque | 355.5 lb-ft
482.1 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed synchronized | |
16-speed creeper |
Transmission — 12 forward and reverse synchronized
Type | synchronized |
Gears | 12 forward and reverse |
Clutch | 330mm cerametallic disc |
With 18.4-38 rear tires. | |
 | |

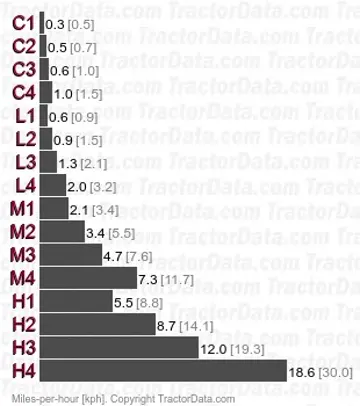

Transmission — 16 forward and reverse creeper
Type | creeper |
Gears | 16 forward and reverse |
Clutch | 330mm cerametallic disc |
With 18.4-38 rear tires. | |
 | |
Dimensions
Renault 145-14 TX Tires | |
|---|---|
Standard tires (ag) | Front: 16.9-28. Rear: 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 107.9 inches
274 cm |
Length | 200 inches
508 cm |
Width | 80.9 inches
205 cm |
Height | 115 inches
292 cm |
Weight | 13360 lbs
6060 kg |
Max weight | 18739 lbs
8500 kg |
Clearance (front axle) | 20.9 inches
53 cm |
Clearance (rear axle) | 22.1 inches
56 cm |
Front tread | 63 to 78.7 inches
160 to 199 cm |
Rear tread | 59.1 to 78.7 inches
150 to 199 cm |
Photos

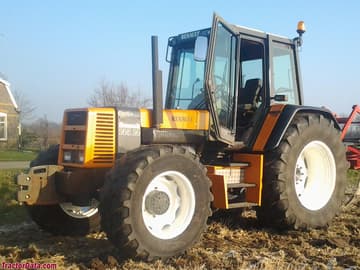

Renault 145-14 TX, left side.
Renault 145-14 TX, right side.
Renault 145-14 TX with cab removed.
