Roper K522 Sprint
The Roper K522 Sprint is a tractor produced by Roper Lawn Tractors. It is equipped with a 206 cc 12.57 ci engine. The rated power output is 5 hp 3.7 kW. Transmission: 3 forward and 1 reverse. Operating weight: 339 lbs 153 kg.
Engine Power
5 hp
3.7 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
3 forward and 1 reverse
Operating Weight
339 lbs
153 kg
Roper Lawn Tractors Roper K522 Sprint Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1973 - 1974
Riding lawn mower |
|---|---|
1973 - 1974 | |
Riding lawn mower | |
1973 - 1974 | |
|---|---|
Riding lawn mower |
Production | |
|---|---|
Manufacturer | Roper |
Riding lawn mower | |
Built in Orangeburg, South Carolina, USA | |
Variants | |
|---|---|
K522 | electric start |
K521 | manual start |
Roper K522 Engine | |
|---|---|
5HP Briggs & Stratton 206cc 1-cyl gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Roper K522 Transmission | |
|---|---|
3-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 40.5 inches
102 cm |
Weight | 339 lbs
153 kg |
Front tire | 10.5x3.5 |
Rear tire | 12.5x4.1 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 24 |

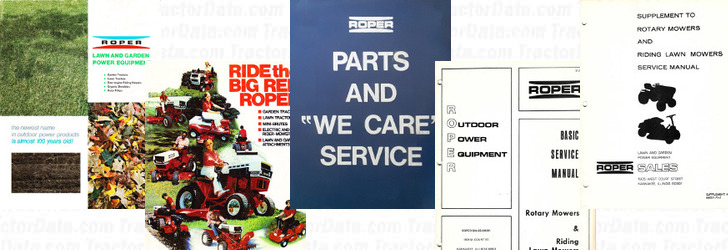

References | |
|---|---|
 | |
Lawn and Garden Power Equipment published in 1973, by Roper | |
Ride the Big Red Roper published in 1974 | |
Parts and "We Care" Service published in 1986 | |
Service Manual Rotary Mowers & Riding Lawn Mowers (MB001-74-2) published in 1974 | |
Service Manual Rotary Mowers & Riding Lawn Mowers (MB001-75-2) published in 1975 |
Engine
| 1973 - 1974
Riding lawn mower |
|---|---|
1973 - 1974 | |
Riding lawn mower | |
1973 - 1974 | |
|---|---|
Riding lawn mower |
Engine Detail — 206 cc / 12.57 ci Gasoline
Manufacturer | Briggs & Stratton 130905 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 206 cc
12.57 ci |
Bore/Stroke | 2.56x2.44 inches
65 x 62 mm |
Power (gross) | 5 hp
3.7 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1973 - 1974
Riding lawn mower |
|---|---|
1973 - 1974 | |
Riding lawn mower | |
1973 - 1974 | |
|---|---|
Riding lawn mower |
Transmission — 3 forward and 1 reverse
Gears | 3 forward and 1 reverse |
 | |
Dimensions
| 1973 - 1974
Riding lawn mower |
|---|---|
1973 - 1974 | |
Riding lawn mower | |
1973 - 1974 | |
|---|---|
Riding lawn mower |
Roper K522 Tires | |
|---|---|
Lawn/turf front | 10.5x3.5 |
Lawn/turf rear | 12.5x4.1 |
Dimensions | |
|---|---|
Wheelbase | 40.5 inches
102 cm |
Length | 57.5 inches
146 cm |
Width | 32 inches
81 cm |
Height | 37.5 inches
95 cm |
Shipping weight | 339 lbs
153 kg |
Attachments
| 1973 - 1974
Riding lawn mower |
|---|---|
1973 - 1974 | |
Riding lawn mower | |
1973 - 1974 | |
|---|---|
Riding lawn mower |
26" Mower deck | |
|---|---|
Type | mid-mount Roper |
1-blade with manual lift | |
Cutting width | 26 inches
66 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Cut positions | 5 |
