Roper L190 Rally
The Roper L190 Rally is a tractor produced by Roper Lawn Tractors. It is equipped with a 399 cc 24.4 ci engine. The listed engine power is Gasoline (gross): 11 hp / 8.2 kW. Transmission: 6 forward and 2 reverse.
Engine Power
Gasoline (gross): 11 hp / 8.2 kW
Fuel & Capacities
Gasoline
Transmission
6 forward and 2 reverse
Overview
 | 1983
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Roper |
Lawn tractor | |
Roper L190 Engine | |
|---|---|
11HP Briggs & Stratton 399cc 1-cyl gasoline | |
Engine details ...  |
Roper L190 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 399 cc / 24.4 ci Gasoline
Manufacturer | Briggs & Stratton 250000 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 399 cc
24.4 ci |
Bore/Stroke | 3.4375x2.625 inches
87 x 67 mm |
Power (gross) | 11 hp
8.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 6 forward and 2 reverse belt-driven gear
Type | belt-driven gear |
Gears | 6 forward and 2 reverse |
Dimensions
Roper L190 Tires |
|---|
Dimensions |
|---|
Attachments
36" Mower deck | |
|---|---|
Type | mid-mount Roper |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Photos

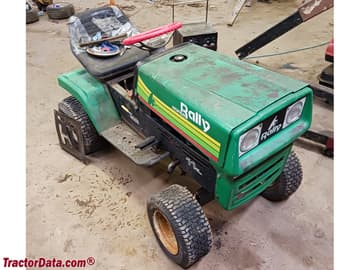

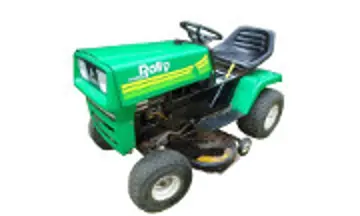

Roper L190 Rally
Roper L190 Rally
Roper L190 Rally
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Roper Lawn Tractors Roper L190 Rally.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Roper Lawn Tractors Roper L190 Rally Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Roper Lawn Tractors Roper L190 Rally.
Converted Equivalents:
Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
