Rugg 5060

The Rugg 5060 is a tractor produced by Rugg Lawn Tractors. The rated power output is 8 hp 6.0 kW. Transmission: 3 forward and 1 reverse. Drive type: belt.

Engine Power
8 hp 6.0 kW
Drive & Traction
belt
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse

Rugg Lawn Tractors Rugg 5060 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

Rugg 5060 tractor photo
1970 Lawn tractor
1970
Lawn tractor
Production
Manufacturer
Rugg
Lawn tractor
Built in Newark, New Jersey, USA
Rugg 5060 Engine
8HP Briggs & Stratton 1-cyl gasoline
Engine details ...
Rugg 5060 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Front tire
11-4.00
Rear tire
15x6.00-6
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12

Engine

Engine Detail — Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Power (gross)
8 hp 6.0 kW
Starter
manual recoil, electric OptOptional
Starter volts
12

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type
belt-driven gear
Gears
3 forward and 1 reverse

Dimensions

Rugg 5060 Tires
Lawn/turf front
11-4.00
Lawn/turf rear
15x6.00-6
Dimensions

Attachments

Attachment overview
26" mid-mount mower deck
Blade
26" Mower deck
Type
mid-mount Rugg
1-blade with manual lift
Cutting width
26 inches 66 cm
Drive
belt

Photos

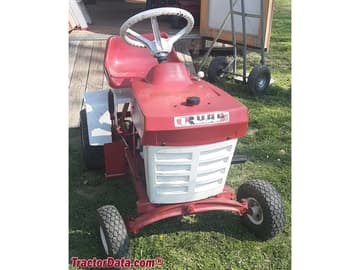

Rugg 5060 lawn tractor.

Rugg 5060 lawn tractor.
