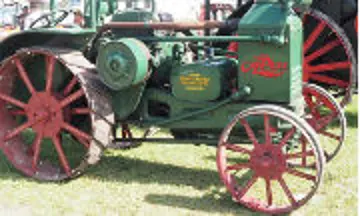

Advance-Rumely OilPull W 20/30
The Advance-Rumely OilPull W 20/30 is a tractor produced by Rumely. It is equipped with a 371.5 ci 6.1 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 6630 lbs 3007 kg.
Fuel & Capacities
18.25 gal
69.1 L
Transmission
3 forward and 1 reverse
Operating Weight
6630 lbs
3007 kg
Overview
 | 1928 - 1930
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Advance-Rumely |
Standard-tread tractor | |
Built in La Porte, Indiana, USA | |
Total built | 3,952 |
Advance-Rumely OilPull W 20/30 Engine | |
|---|---|
Rumley 6.1L 2-cyl kerosene | |
Fuel tank | 18.25 gal
69.1 L |
Aux. fuel | 1.25 gal
4.7 L |
Engine details ...  | |
Advance-Rumely OilPull W 20/30 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Advance-Rumely OilPull W 20/30 Power | |
|---|---|
Drawbar (claimed) | 20 hp
14.9 kW |
Belt (claimed) | 30 hp
22.4 kW |
Drawbar (tested) | 26.1 hp
19.5 kW |
Belt (tested) | 35.4 hp
26.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 6630 lbs
3007 kg |
Front tire | 30x5.50 |
Rear tire | 46x12 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 371.5 ci / 6.1 L Kerosene
Manufacturer | Rumley |
Fuel Type | Kerosene |
Configuration | 2-cylinder, liquid-cooled horizontal |
Displacement | 371.5 ci
6.1 L |
Bore/Stroke | 5.8125x7.00 inches
148 x 178 mm |
Rated RPM | 850 |
Coolant capacity | 40 qts
37.9 L |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Advance-Rumely OilPull W 20/30 Tires | |
|---|---|
Ag front | 30x5.50 steel |
Ag rear | 46x12 steel |
Dimensions | |
|---|---|
Length | 136 inches
345 cm |
Width | 56 inches
142 cm |
Height | 91 inches
231 cm |
Weight | 6630 lbs
3007 kg |
Tests
Nebraska Tractor Test 141 | |
|---|---|
Kerosene 3-speed
September 15 - 24, 1927
Link: Nebraska Tractor Test 141 file | |
Belt power (max) | 35.4 hp
26.4 kW |
Drawbar performance | |
Max power | 26.1 hp
19.5 kW |
Gear 1 used for power test. | |
Max pull | 3007.5 lbs
1364 kg |
Gear 1 used for pull test. | |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Rumely Advance-Rumely OilPull W 20/30.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Rumely Advance-Rumely OilPull W 20/30 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Rumely Advance-Rumely OilPull W 20/30.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
