SAME Hercules 160

The SAME Hercules 160 is a tractor produced by Same. It is equipped with a 380.40 ci 6.2 L engine. The listed engine power is Diesel (listed): 160 hp / 119.3 kW. Transmission: 24 forward and 8 reverse. Operating weight: 13558 lbs 6149 kg.

Engine Power

Diesel (listed): 160 hp / 119.3 kW

Fuel & Capacities

63.4 gal 240.0 L

Transmission

24 forward and 8 reverse

Operating Weight

13558 lbs 6149 kg

Overview

	1979 - 1983 Row-Crop tractor

Production
Manufacturer	SAME
Row-Crop tractor

SAME Hercules 160 Engine
SAME 6.2L 6-cyl diesel
Fuel tank	63.4 gal 240.0 L
Engine details ...

SAME Hercules 160 Power
Engine	160 hp 119.3 kW

Mechanical
Four-wheel drive
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Cab standard with heater. Air-conditioning optional.

Hydraulics
Pump flow	15.9 gpm 60.2 lpm

Tractor hitch
Rear Type	II
Rear lift	11000 lbs 4989 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	13558 lbs 6149 kg
Front tire	16.9/14-30
Rear tire	20.8-38
Full dimensions and tires ...

References

Hercules 160 published in 1981, by SAME
Hercules 160 published in 1984, by SAME

Engine

Engine Detail — 380.40 ci / 6.2 L Diesel

Manufacturer	SAME 1056P
Configuration	turbocharged diesel, 6-cylinder, air-cooled
Displacement	380.40 ci 6.2 L
Bore/Stroke	4.133x4.724 inches 105 x 120 mm
Power	160 hp 119.3 kW
Air cleaner	dry
Compression	17:1
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
12-speed synchronized
24-speed creeper

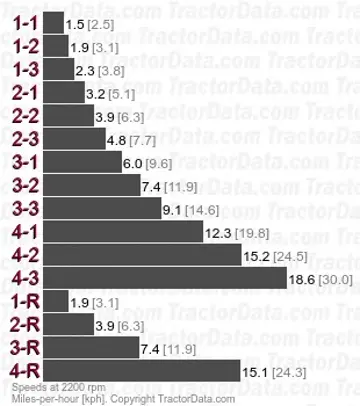

Transmission — 12 forward and 4 reverse synchronized

Type	synchronized
Gears	12 forward and 4 reverse
Clutch	dry disc
Three gears, plus reverse, in four ranges.
With 20.8-38 rear tires and 30 kph option.

Transmission
Type	creeper
Gears	24 forward and 8 reverse

Dimensions

SAME Hercules 160 Tires
Standard tires (ag)	Front: 16.9/14-30. Rear: 20.8-38

Dimensions
Wheelbase	112.6 inches 286 cm
Length	184.3 inches 468 cm
Width	94.5 inches 240 cm
Weight	13558 lbs 6149 kg
Ground clearance	21.6 inches 54 cm

SAME Hercules 160 Height
Hood	70.8 inches 179 cm
Cab	113.3 inches 287 cm
Exhaust	110.2 inches 279 cm

Photos

SAME Hercules 160

Recommended Implements & Sizing Guide

Engineering recommendations for Same Hercules 160 based on its 160 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Same Hercules 160.

Estimated Continuous Field Runtime: 7.6 hrs

Approximately 7.6 hours of continuous field operation at ~75% rated power on a full tank (63.4 gal / 240 L).

Estimated 75% Load Fuel Burn~8.3 gal/hr (31.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
