SAME Titan 160
The SAME Titan 160 is a tractor produced by Same. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 159 hp 118.6 kW. Transmission: 27 forward and reverse. Operating weight: 12787 lbs 5800 kg.
Engine Power
159 hp
118.6 kW
Fuel & Capacities
60.8 gal
230.1 L
Transmission
27 forward and reverse
Operating Weight
12787 lbs
5800 kg
Same Titan 160 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1998
Titan SeriesRow-Crop tractor |
|---|---|
1991 - 1998 | |
Titan Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | SAME |
Row-Crop tractor | |
SAME Titan 160 Engine | |
|---|---|
SAME 6.0L 6-cyl diesel | |
Fuel tank | 60.8 gal
230.1 L |
95.1 galOptOptional
360.0 L | |
Engine details ...  | |
SAME Titan 160 Transmission | |
|---|---|
27-speed power shift | |
Transmission details ...  |
SAME Titan 160 Power | |
|---|---|
Engine | 159 hp
118.6 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Differential lock | electro-hydraulic front and rear |
Power steering | |
Hydraulic wet disc brakes | |
Trailer brakes | hydraulic |
Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Pump flow | 15.9 gpm
60.2 lpm |
Tractor hitch | |
|---|---|
Rear lift | 15432 lbs
6999 kg |
18960 lbsOptOptional
8600 kg | |
Front lift | 5071 lbs
2300 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 |
Front PTO | independent OptOptional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Weight | 12787 lbs
5800 kg |
Front tire | 16.9R30 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Titan 145-160-190 published in 1996, by SAME |
Engine
Engine Detail — 366.1 ci / 6.0 L Diesel
Manufacturer | SAME 1000.6 WTI |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled, Prior to the 1995 model year the Titan 160 used an air-cooled engine. |
Displacement | 366.1 ci
6.0 L |
Bore/Stroke | 4.134x4.54 inches
105 x 115 mm |
Power | 159 hp
118.6 kW |
Rated RPM | 2350 |
Transmission
Transmission — 27 forward and reverse power shift
Type | power shift |
Gears | 27 forward and reverse |
Clutch | electro-hydraulic wet disc |

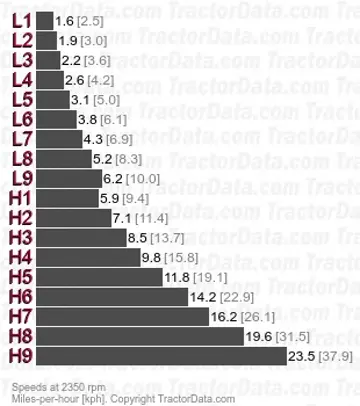

Nine gears in three ranges. | |
With 20.8R38 rear tires. Reverse speeds are 10% faster than forward. | |
 | |
Dimensions
SAME Titan 160 Tires | |
|---|---|
Standard tires (ag) | Front: 16.9R30. Rear: 20.8R38 |
Optional tires (ag) | Front: 480/70R30. Rear: 580/70R38 |
Dimensions | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Length | 187 inches
474 cm |
Width | 92.9 inches*Minimum width.
235 cm |
Height (hood) | 75.6 inches
192 cm |
Height (cab) | 114.2 inches
290 cm |
Weight | 12787 lbs
5800 kg |
Ground clearance | 20.3 inches
51 cm |
Front tread | 74.8 to 98.4 inches
189 to 249 cm |
Rear tread | 72.1 to 100.4 inches
183 to 255 cm |
Photos
SAME Titan 160 tractor photo
