Samson S25 Sieve-Grip
The Samson S25 Sieve-Grip is a tractor produced by Samson. It is equipped with a 383 ci 6.3 L engine. Transmission: 2 forward. Operating weight: 5800 lbs 2630 kg.
Fuel & Capacities
18 gal
68.1 L
Transmission
2 forward
Operating Weight
5800 lbs
2630 kg
Samson S25 Sieve-Grip Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1916 - 1918
Standard-tread tractor |
|---|---|
1916 - 1918 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Samson |
Standard-tread tractor | |
Built in Stockton, California, USA | |
Original price was $1,750 in 1919 | |
Samson S25 Engine | |
|---|---|
Samson 6.3L 4-cyl distillate | |
Fuel tank | 18 gal
68.1 L |
Engine details ...  | |
Samson S25 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Samson S25 Power | |
|---|---|
Drawbar (claimed) | 12 hp
8.9 kW |
Belt (claimed) | 28.3 hp
21.1 kW |
Plows | 3 |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | bull gear |
Manual steering | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 5800 lbs
2630 kg |
Front tire | 41x18 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 12 inches
30 cm |
Width | 8 inches
20 cm |
RPM | 750 |
Speed | 2360 ft/min
719.33 meters/min |
Engine
Engine Detail — 383 ci / 6.3 L
Manufacturer | Samson |
Configuration | 4-cylinder, liquid-cooled |
distillate | |
Displacement | 383 ci
6.3 L |
Bore/Stroke | 4.25x6.75 inches
108 x 171 mm |
Rated RPM | 650 |
Sparkplug | AC Titan 0.875 |
Transmission
Transmission — 2 forward gear
Type | gear |
Gears | 2 forward |
 | |
Dimensions
Samson S25 Tires | |
|---|---|
Ag front | 41x18 (steel) |
Dimensions | |
|---|---|
Length | 150 inches
381 cm |
Width | 63 inches
160 cm |
Height | 50 inches
127 cm |
Shipping weight | 5800 lbs
2630 kg |
Photos

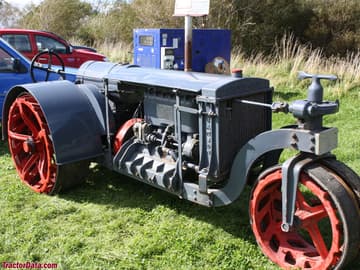

Samson S25 Sieve-Grip
Samson S25 Sieve-Grip
Samson S25 Sieve-Grip
