Schluter AS 22
The Schluter AS 22 is a tractor produced by Schluter. It is equipped with a 143.8 ci 2.4 L engine. The listed engine power is Diesel (listed): 22 hp / 16.4 kW. Transmission: 5 forward and 1 reverse. Operating weight: 3571 lbs 1619 kg.
Engine Power
Diesel (listed): 22 hp / 16.4 kW
Fuel & Capacities
Diesel
Transmission
5 forward and 1 reverse
Operating Weight
3571 lbs
1619 kg
Overview
 | 1953 - 1956
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Schluter |
Standard-tread tractor | |
Schluter AS 22 Engine | |
|---|---|
Schluter 2.4L 2-cyl diesel | |
Engine details ...  |
Schluter AS 22 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Schluter AS 22 Power | |
|---|---|
Engine | 22 hp
16.4 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Weight | 3571 lbs
1619 kg |
Front tire | 5.50-16 |
Rear tire | 8-32 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 143.8 ci / 2.4 L Diesel
Manufacturer | Schluter |
Fuel Type | Diesel |
Configuration | 2-cylinder, liquid-cooled |
Displacement | 143.8 ci
2.4 L |
Bore/Stroke | 3.94x5.91 inches
100 x 150 mm |
Power | 22 hp
16.4 kW |
Air cleaner | oil bath |
Compression | 20:1 |
Rated RPM | 1500 |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Dimensions
Schluter AS 22 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 8-32 |
Dimensions | |
|---|---|
Wheelbase | 70.9 inches
180 cm |
Length | 110 inches
279 cm |
Width | 62.2 inches
157 cm |
Height | 62.6 inches
159 cm |
Weight | 3571 lbs
1619 kg |
Ground clearance | 15.8 inches
40 cm |
Photos

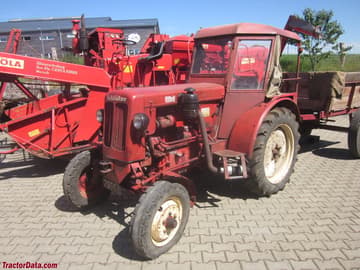

Schluter AS 22
Recommended Implements & Sizing Guide
Engineering recommendations for Schluter AS 22 based on its 22 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Schluter AS 22.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Schluter AS 22 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Schluter AS 22.
Converted Equivalents:
Horsepower (HP)22 hp
Kilowatts (kW)16.4 kW
Metric Horsepower (PS / CV)22.3 PS
Direct Competitor Comparison
Compare Schluter AS 22 against same-era industry alternatives in the same horsepower class.
Current Model
Schluter
Schluter AS 22
Engine Power:Diesel (listed): 22 hp / 16.4 kW
★ Baseline Reference
