Schluter Profi-Trac 2500 VL

The Schluter Profi-Trac 2500 VL is a tractor produced by Schluter. It is equipped with a 696.4 ci 11.4 L engine. The listed engine power is Diesel (listed): 240 hp / 179.0 kW. Transmission: 18 forward and 4 reverse. Drive type: 4x4 4WD. Operating weight: 24,255 lbs 11002 kg.

Engine Power

Diesel (listed): 240 hp / 179.0 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

117.6 gal 445.1 L

Transmission

18 forward and 4 reverse

Operating Weight

24,255 lbs 11002 kg

Overview

	1976 - 1980 Profi-Trac SeriesFour-wheel Drive (4WD) tractor Profi-Trac Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	Schluter
Four-wheel Drive (4WD) tractor

Schluter Profi-Trac 2500 VL Engine
MAN 11.4L 6-cyl diesel
Fuel tank	117.6 gal 445.1 L
Engine details ...

Schluter Profi-Trac 2500 VL Transmission
18-speed
Transmission details ...

Schluter Profi-Trac 2500 VL Power
Engine	240 hp 179.0 kW

Mechanical
Drive	4x4 4WD
Power four-wheel steering
Dry disc brakes
Cab standard.

Hydraulics
Total flow	10.6 gpm 40.1 lpm
	11.9 gpm 45.0 lpm

Tractor hitch
Rear lift	12,789 lbs 5801 kg
	16,096.5 lbsOptOptional 7301 kg

Power Take-off (PTO)
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	112.2 inches 284 cm
Weight	24,255 lbs 11002 kg
Front tire	18.4-38
Rear tire	18.4-38
Full dimensions and tires ...

Engine

Engine Detail — 696.4 ci / 11.4 L Diesel

Manufacturer	MAN D 2566 ME
Fuel Type	Diesel
Configuration	6-cylinder
Displacement	696.4 ci 11.4 L
Bore/Stroke	4.921x6.102 inches 125 x 155 mm
Power	240 hp 179.0 kW
Rated RPM	2200
Torque	621.8 lb-ft 843.2 Nm
Torque RPM	1500

Transmission

Transmission — 18 forward and 4 reverse

Gears

18 forward and 4 reverse

Dimensions

Schluter Profi-Trac 2500 VL Tires
Ag front	18.4-38
Ag rear	18.4-38

Dimensions
Wheelbase	112.2 inches 284 cm
Length	242.1 inches 614 cm
Height	136.2 inches 345 cm
Weight	24,255 lbs 11002 kg

Photos

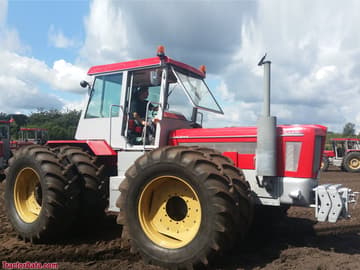

Schluter Profi-Trac 2500 VL

Recommended Implements & Sizing Guide

Engineering recommendations for Schluter Profi-Trac 2500 VL based on its 240 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Schluter Profi-Trac 2500 VL.

Estimated Continuous Field Runtime: 9.4 hrs

Approximately 9.4 hours of continuous field operation at ~75% rated power on a full tank (117.6 gal / 445.2 L).

Estimated 75% Load Fuel Burn~12.5 gal/hr (47.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
