Schluter Profi-Trac 3500 TVL

The Schluter Profi-Trac 3500 TVL is a tractor produced by Schluter. It is equipped with a 696.4 ci 11.4 L engine. The listed engine power is Diesel (listed): 320 hp / 238.6 kW. Transmission: 18 forward and 4 reverse. Drive type: 4x4 4WD. Operating weight: 27,011 lbs 12252 kg.

Engine Power

Diesel (listed): 320 hp / 238.6 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

117.6 gal 445.1 L

Transmission

18 forward and 4 reverse

Operating Weight

27,011 lbs 12252 kg

Overview

	1978 - 1981 Profi-Trac SeriesFour-wheel Drive (4WD) tractor Profi-Trac Series Four-wheel Drive (4WD) tractor

Production
Manufacturer	Schluter
Four-wheel Drive (4WD) tractor

Schluter Profi-Trac 3500 TVL Engine
MAN 11.4L 6-cyl diesel
Fuel tank	117.6 gal 445.1 L
Engine details ...

Schluter Profi-Trac 3500 TVL Transmission
18-speed
Transmission details ...

Schluter Profi-Trac 3500 TVL Power
Engine	320 hp 238.6 kW

Mechanical
Drive	4x4 4WD
Power four-wheel steering
Dry disc brakes
standard

Hydraulics
Total flow	14.0 gpm 53.0 lpm

Tractor hitch
Rear lift	12,789 lbs 5801 kg
	18,522 lbsOptOptional 8401 kg

Power Take-off (PTO)
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	113.8 inches 289 cm
Weight	27,011 lbs 12252 kg
Front tire	20.8R38
Rear tire	20.8R38
Full dimensions and tires ...

Engine

Engine Detail — 696.4 ci / 11.4 L Diesel

Manufacturer	MAN D 2566 MTE
Configuration	turbocharged diesel, 6-cylinder
Displacement	696.4 ci 11.4 L
Bore/Stroke	4.921x6.102 inches 125 x 155 mm
Power	320 hp 238.6 kW
Rated RPM	2200
Torque	839.4 lb-ft 1138.2 Nm
Torque RPM	1500

Transmission

Transmission — 18 forward and 4 reverse

Gears

18 forward and 4 reverse

Dimensions

Schluter Profi-Trac 3500 TVL Tires
Ag front	20.8R38
Ag rear	20.8R38

Dimensions
Wheelbase	113.8 inches 289 cm
Length	242.1 inches 614 cm
Height	136.2 inches 345 cm
Weight	27,011 lbs 12252 kg

Photos

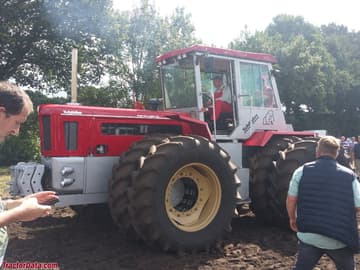

Schluter Profi-Trac 3500 TVL

Recommended Implements & Sizing Guide

Engineering recommendations for Schluter Profi-Trac 3500 TVL based on its 320 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Schluter Profi-Trac 3500 TVL.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (117.6 gal / 445.2 L).

Estimated 75% Load Fuel Burn~16.6 gal/hr (63 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
