Schluter Super 1500TVL
The Schluter Super 1500TVL is a tractor produced by Schluter. It is equipped with a 434.9 ci 7.1 L engine. The listed engine power is Engine Detail — 434.9 ci / 7.1 L (listed): 145 hp / 108.1 kW. Transmission: 12 forward and 6 reverse. Operating weight: 12,072 lbs 5475 kg.
Engine Power
Engine Detail — 434.9 ci / 7.1 L (listed): 145 hp / 108.1 kW
Fuel & Capacities
68.7 gal
260.0 L
Transmission
12 forward and 6 reverse
Operating Weight
12,072 lbs
5475 kg
Overview
 | 1972 - 1992
Model year 1972-19741974-19761976-19841984-1992 |
|---|
Production | |
|---|---|
Manufacturer | Schluter |
Schluter Super 1500TVL Engine | |
|---|---|
7.1L 6-cyl | |
Fuel tank | 68.7 gal
260.0 L |
Engine details ...  | |
Schluter Super 1500TVL Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Schluter Super 1500TVL Power | |
|---|---|
Engine | 145 hp
108.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | power assist |
Drum brakes | |
Tractor hitch | |
|---|---|
Rear lift | 12,348 lbs
5601 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 103.9 inches
263 cm |
Weight | 12,072 lbs
5475 kg |
Front tire | 12.4-28 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 434.9 ci / 7.1 L
Manufacturer | SDMT 110 W 6 |
Configuration | turbo, 6-cylinder |
Displacement | 434.9 ci
7.1 L |
Bore/Stroke | 4.331x4.921 inches
110 x 125 mm |
Power | 145 hp
108.1 kW |
Rated RPM | 2000 |
Torque | 434.4 lb-ft
589.0 Nm |
Torque RPM | 1300 |
Transmission
Transmission — 12 forward and 6 reverse
Gears | 12 forward and 6 reverse |
Dimensions
Schluter Super 1500TVL Tires | |
|---|---|
Ag front | 12.4-28 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 103.9 inches
263 cm |
Length | 178.7 inches
453 cm |
Height | 101.2 inches
257 cm |
Weight | 12,072 lbs
5475 kg |

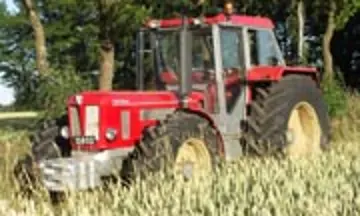

Photos
Schluter Super 1500TVL
Recommended Implements & Sizing Guide
Engineering recommendations for Schluter Super 1500TVL based on its 145 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Schluter Super 1500TVL.
Estimated Continuous Field Runtime: 9.1 hrs
Approximately 9.1 hours of continuous field operation at ~75% rated power on a full tank (68.7 gal / 260.1 L).
Estimated 75% Load Fuel Burn~7.5 gal/hr (28.5 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Schluter Super 1500TVL Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Schluter Super 1500TVL.
Converted Equivalents:
Horsepower (HP)145 hp
Kilowatts (kW)108.1 kW
Metric Horsepower (PS / CV)147 PS
