Sears Custom 10 917.25260
The Sears Custom 10 917.25260 is a tractor produced by Sears Lawn Tractors. It is equipped with a 388 cc 23.7 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: 4 forward and 1 reverse. Operating weight: 87 lbs 39 kg.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
87 lbs
39 kg
Overview
 | 1968 - 1972
Model year 19681969197019711972
Garden tractorRoper built
Garden tractor
Roper built |
|---|
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Roper |
Garden tractor | |
Original price was $610 in 1968 | |
Sears Custom 10 Engine | |
|---|---|
10HP Tecumseh 388cc 1-cyl gasoline | |
Engine details ...  |
Sears Custom 10 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 550 lbs
249 kg |
Front tire | 5.0x16 |
Rear tire | 7.5x22.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Year-Round Tractors published in 1968, by Sears | |
Fall - Winter Catalog published in 1968, by Sears | |
Suburban and Farm Catalog published in 1968, by Sears | |
Spring - Summer Catalog published in 1968, by Sears |
Engine
Engine Detail — 388 cc / 23.7 ci Gasoline
Manufacturer | Tecumseh HH-100 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.3125x2.75 inches
84 x 70 mm |
Power | 10 hp
7.5 kW |
Fuel system | carburetor |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 4 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Dimensions
Sears Custom 10 Tires | |
|---|---|
Lawn/turf front | 5.0x16 |
Lawn/turf rear | 7.5x22.5 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 62 inches
157 cm |
Width | 35 inches
88 cm |
Height (steering wheel) | 35 inches
88 cm |
Weight | 550 lbs
249 kg |
Attachments
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
38" Mower deck | |
|---|---|
Type | mid-mount Sears 32-25012 |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Weight | 87 lbs
39 kg |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |
Photos

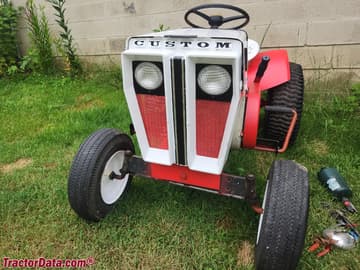

1968 Sears Custom 10XL garden tractor.
1968 Sears Custom 10XL garden tractor.
1968 Sears Custom 10XL garden tractor.
1968 Sears Custom 10XL garden tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sears Lawn Tractors Sears Custom 10 917.25260.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sears Lawn Tractors Sears Custom 10 917.25260 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sears Lawn Tractors Sears Custom 10 917.25260.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
