Sears GT-14 917.25703
The Sears GT-14 917.25703 is a tractor produced by Sears Lawn Tractors. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Varidrive. Operating weight: 148 lbs 67 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
1.75 gal
6.6 L
Transmission
Varidrive
Operating Weight
148 lbs
67 kg
Overview
 | 1978 - 1980
Garden tractorRoper built
Garden tractor
Roper built |
|---|
Production | |
|---|---|
Distributor | Sears |
Manufacturer | Roper |
Garden tractor | |
Original price was $1,779 in 1979 | |
Sears GT-14 Engine | |
|---|---|
14HP 1-cyl gasoline | |
Fuel tank | 1.75 gal
6.6 L |
Engine details ...  | |
Sears GT-14 Transmission | |
|---|---|
3-speed gear with mechanical CVT | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 580 lbs
263 kg |
Front tire | 16.0x5.50 |
Rear tire | 23.0x8.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 20 |
Battery volts | 12 |

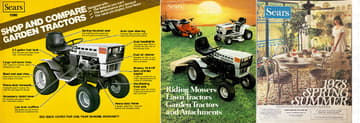

References | |
|---|---|
 | |
Garden Tractors published in 1980, by Sears | |
Riding Mowers, Lawn Tractors, Garden Tractors and Attachments published in 1979, by Sears | |
Spring/Summer Catalog published in 1978, by Sears |
Engine
Engine Detail — Gasoline
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Varidrive
Transmission | Varidrive |
Type | belt-driven gear with mechanical CVT |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Sears GT-14 Tires | |
|---|---|
Lawn/turf front | 16.0x5.50 |
Lawn/turf rear | 23.0x8.50 |
Dimensions | |
|---|---|
Length | 65 inches
165 cm |
Width | 35.5 inches
90 cm |
Height | 39.5 inches
100 cm |
Shipping weight | 580 lbs
263 kg |
Attachments
42" Mower deck | |
|---|---|
Type | mid-mount Sears 25357 |
3-blade with manual lift | |
Cutting width | 42 inches
106 cm |
Weight | 148 lbs
67 kg |
Photos

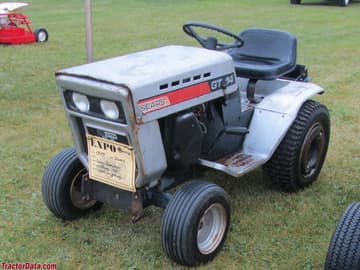

Sears GT-14 917.25703
Craftsman GT-14 operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Sears Lawn Tractors Sears GT-14 917.25703.
Estimated Continuous Field Runtime: 2.5 hrs
Approximately 2.5 hours of continuous field operation at ~75% rated power on a full tank (1.8 gal / 6.6 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Sears Lawn Tractors Sears GT-14 917.25703 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Sears Lawn Tractors Sears GT-14 917.25703.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
