Sears Hydro-Trac 14 917.25600

The Sears Hydro-Trac 14 917.25600 is a tractor produced by Sears Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Sundstrand. Operating weight: 725 lbs 328 kg.

Overview

	1971 Garden tractorRoper built Garden tractor Roper built

Production
Distributor	Sears
Manufacturer	Roper
Garden tractor
Original price was $1,200 in 1971

Sears Hydro-Trac 14 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Engine details ...

Sears Hydro-Trac 14 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station.

Tractor hitch
Type	Sears 3- Point OptOptional

Dimensions & Tires
Weight	725 lbs 328 kg
Front tire	16x6.50-8
Rear tire	23x9.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Spring through Summer Catalog published in 1971, by Sears
Suburban and Farm Living published in 1971, by Sears

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
Displacement	531 cc 32.4 ci
Bore/Stroke	3.5625x3.25 inches 90 x 83 mm
Power	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Sundstrand

Transmission	Sundstrand
Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

Sears Hydro-Trac 14 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x9.50-12

Dimensions
Length	65.125 inches 165 cm
Width	37 inches 93 cm
Height	39.5 inches 100 cm
Shipping weight	725 lbs 328 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

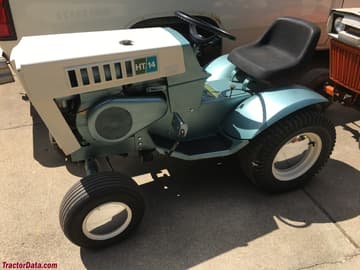

Sears Hydro-Trac 14 917.25600
