Shibaura SD3203
The Shibaura SD3203 is a tractor produced by Shibaura. It is equipped with a 90.6 ci 1.5 L engine. The rated power output is 32 hp 23.9 kW. Transmission: 24 forward and 8 reverse. Operating weight: 3571 lbs 1619 kg.
Engine Power
32 hp
23.9 kW
Fuel & Capacities
Diesel
Transmission
24 forward and 8 reverse
Operating Weight
3571 lbs
1619 kg
Shibaura SD3203 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1980 - 1985
SD 3 SeriesCompact Utility tractor |
|---|---|
1980 - 1985 | |
SD 3 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Matsumoto, Japan | |
Shibaura SD3203 Engine | |
|---|---|
Shibaura 1.5L 4-cyl diesel | |
Engine details ...  |
Shibaura SD3203 Power | |
|---|---|
Engine | 32 hp
23.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 3571 lbs
1619 kg |
Front tire | 6.00-16 |
Rear tire | 12.4/11-28 |
Full dimensions and tires ...  | |

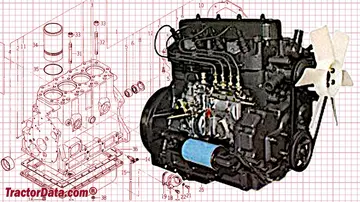

Engine
Engine Detail — 90.6 ci / 1.5 L Diesel
Manufacturer | Shibaura LEM754A |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 90.6 ci
1.5 L |
Bore/Stroke | 2.95x3.70 inches
75 x 94 mm |
Power | 32 hp
23.9 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Shibaura SD3203 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
12-speed gear | |
24-speed creeper |
Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Transmission | |
Type | creeper |
Gears | 24 forward and 8 reverse |
Dimensions
Shibaura SD3203 Tires | |
|---|---|
Standard tires (ag) | Front: 6.00-16. Rear: 12.4/11-28 |
Dimensions | |
|---|---|
Length | 131 inches
332 cm |
Width | 60 inches
152 cm |
Height | 76 inches
193 cm |
Weight | 3571 lbs
1619 kg |
Photos
Shibaura SD3203 tractor photo
