Shibaura SD3243
The Shibaura SD3243 is a tractor produced by Shibaura. It is equipped with a 90.6 ci 1.5 L engine. The listed engine power is Diesel (listed): 32 hp / 23.9 kW. Transmission: 24 forward and 8 reverse. Operating weight: 3982 lbs 1806 kg.
Engine Power
Diesel (listed): 32 hp / 23.9 kW
Fuel & Capacities
Diesel
Transmission
24 forward and 8 reverse
Operating Weight
3982 lbs
1806 kg
Overview
 | 1980 - 1985
SD 3 SeriesCompact Utility tractor
SD 3 Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Built in Matsumoto, Japan | |
Variants | |
|---|---|
3203 | 2WD |
3243 | 4WD |

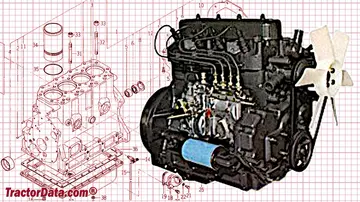

Shibaura SD3243 Engine | |
|---|---|
Shibaura 1.5L 4-cyl diesel | |
Engine details ...  |
Shibaura SD3243 Power | |
|---|---|
Engine | 32 hp
23.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | I |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 3982 lbs
1806 kg |
Front tire | 8-16 |
Rear tire | 12.4/11-28 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 90.6 ci / 1.5 L Diesel
Manufacturer | Shibaura LEM754A |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 90.6 ci
1.5 L |
Power | 32 hp
23.9 kW |
Rated RPM | 2800 |
Starter | electric |
Starter volts | 12 |
Shibaura SD3243 Engine | |
|---|---|
 |
Transmission
Transmission options | |
|---|---|
12-speed gear | |
24-speed creeper |
Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Transmission | |
Type | creeper |
Gears | 24 forward and 8 reverse |
Dimensions
Shibaura SD3243 Tires | |
|---|---|
Standard tires (ag) | Front: 8-16. Rear: 12.4/11-28 |
Dimensions | |
|---|---|
Length | 131 inches
332 cm |
Width | 60 inches
152 cm |
Height | 76 inches
193 cm |
Weight | 3982 lbs
1806 kg |
Photos
Shibaura SD3243 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Shibaura SD3243 based on its 32 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Shibaura SD3243.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Shibaura SD3243 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Shibaura SD3243.
Converted Equivalents:
Horsepower (HP)32 hp
Kilowatts (kW)23.9 kW
Metric Horsepower (PS / CV)32.4 PS
Direct Competitor Comparison
Compare Shibaura SD3243 against same-era industry alternatives in the same horsepower class.
Current Model
Shibaura
Shibaura SD3243
Engine Power:Diesel (listed): 32 hp / 23.9 kW
★ Baseline Reference
