shibaura se3000
 | SE SeriesCompact Utility tractor | SE Series | Compact Utility tractor |
|---|---|---|---|
SE Series | |||
Compact Utility tractor | |||
SE Series | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Shibaura |
Compact Utility tractor | |
Variants | |
|---|---|
SE3000 | 2WD |
SE3040 | 4WD |
Shibaura SE3000 Engine | |
|---|---|
Shibaura 1.4L 3-cyl diesel | |
Fuel tank | 7.7 gal
29.1 L |
Engine details ...  | |
Shibaura SE3000 Transmission | |
|---|---|

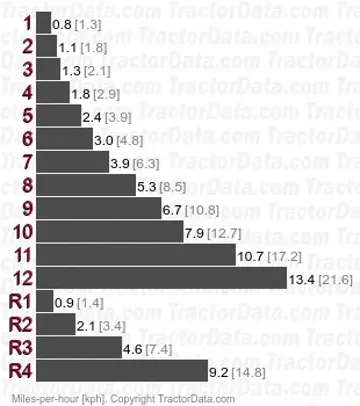

12-speed gear | |
Transmission details ...  |
Shibaura SE3000 Power | |
|---|---|
Engine | 30 hp
22.4 kW |
PTO (claimed) | 26.5 hp
19.8 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Mechanical shoe brakes | |
Two-post ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2133 psi
147.1 bar |
Valves | 1 |
Pump flow | 5.9 gpm
22.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift (at ends) | 2425 lbs
1099 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Clutch | two-stage |
Rear PTO Type | 540 (1.375) |
Dimensions & Tires | |
|---|---|
Weight | 2568 lbs
1164 kg |
Front tire | 5.00x16 |
Rear tire | 12.4x24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
