Shibaura SE6340
The Shibaura SE6340 is a tractor produced by Shibaura. It is equipped with a 208.8 ci 3.4 L engine. The listed engine power is Diesel (listed): 63 hp / 47.0 kW. Transmission: 16 forward and 4 reverse. Operating weight: 6002 lbs 2722 kg.
Engine Power
Diesel (listed): 63 hp / 47.0 kW
Fuel & Capacities
15.85 gal
60.0 L
Transmission
16 forward and 4 reverse
Operating Weight
6002 lbs
2722 kg
Overview
 | SE SeriesUtility tractor |
|---|---|
SE Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Shibaura |
Utility tractor | |
Built in Matsumoto, Japan | |
Variants | |
|---|---|
SE6300 | 2WD |
SE6340 | 4WD |
Shibaura SE6340 Engine | |
|---|---|
Shibaura 3.4L 3-cyl diesel | |
Engine details ...  |
Shibaura SE6340 Transmission | |
|---|---|
16-speed synchromesh | |
Transmission details ...  |
Shibaura SE6340 Power | |
|---|---|
Engine | 63 hp
47.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | spur gear |
Power steering | |
Mechanical wet disc brakes | |
Two-post ROPS. | |
Capacity | |
|---|---|
Fuel | 15.85 gal
60.0 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 6.6 gal
25.0 L |
Pressure | 2900 psi
200.0 bar |
Pump flow | 8.1 gpm
30.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/800/1000 |
Engine RPM | 540@2200 |
800@2200 | |
1000@2200 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.7 inches
210 cm |
Weight | 6002 lbs
2722 kg |
Front tire | 9.50-24 |
Rear tire | 16.9-30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Battery volts | 12 |
Battery AH | 150 |
References | |
|---|---|
 | |
SE5300 - SE6300 - SE7300T - SE8300 - SF1000T published in 1983, by Shibaura |
Engine
Engine Detail — 208.8 ci / 3.4 L Diesel
Manufacturer | Shibaura LER1103 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 208.8 ci
3.4 L |
Bore/Stroke | 4.331x4.724 inches
110 x 120 mm |
Power | 63 hp
47.0 kW |
Air cleaner | dry element |
Compression | 17:1 |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 10.6 qts
10.0 L |
Coolant capacity | 18 qts
17.0 L |
Transmission

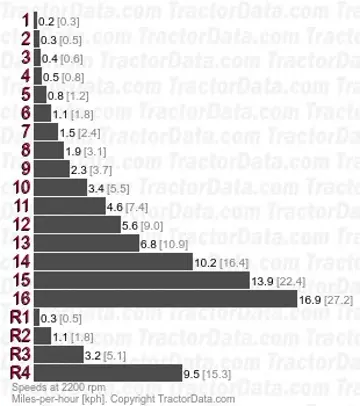

Transmission — 16 forward and 4 reverse synchromesh
Type | synchromesh |
Gears | 16 forward and 4 reverse |
Clutch | 279mm dry disc |
Oil capacity | 47.6 qts
45.0 L |
Four gears, plus reverse, in four ranges. | |
With 16.9-30 rear tires. | |
 | |
Dimensions
Shibaura SE6340 Tires | |
|---|---|
Standard tires (ag) | Front: 9.50-24. Rear: 16.9-30 |
Dimensions | |
|---|---|
Wheelbase | 82.7 inches
210 cm |
Length | 145.7 inches
370 cm |
Width | 73.6 inches
186 cm |
Weight | 6002 lbs
2722 kg |
Ground clearance | 14.4 inches
36 cm |
Front tread | 52.8 to 68.5 inches
134 to 173 cm |
Rear tread | 52.8 to 76.4 inches
134 to 194 cm |
Shibaura SE6340 Height | |
|---|---|
Steering wheel | 68.1 inches
172 cm |
Hood | 60.6 inches
153 cm |
ROPS | 98 inches
248 cm |
Photos
Shibaura SE6340
Shibaura SE6340
Recommended Implements & Sizing Guide
Engineering recommendations for Shibaura SE6340 based on its 63 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 6 ft (72 in)1.8 m | Medium Duty | Medium pasture clearing; rear slip-clutch recommended. |
Rotary TillerSeedbed Prep | 66 to 72 in165 - 180 cm | Medium Duty | Standard utility tiller; slip clutch protection required. |
Disc HarrowSecondary Tillage | 7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙 | Medium Duty | Field leveling and clod breaking behind plows. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Shibaura SE6340.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (15.8 gal / 60 L).
Estimated 75% Load Fuel Burn~3.3 gal/hr (12.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Shibaura SE6340 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Shibaura SE6340.
Converted Equivalents:
Horsepower (HP)63 hp
Kilowatts (kW)47 kW
Metric Horsepower (PS / CV)63.9 PS
