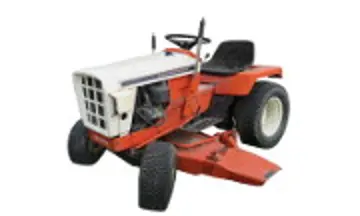

simplicity lawn tractors 3416s
![]() | 1973 - 1974
Sovereign SeriesGarden tractor | 1973 - 1974 | Sovereign Series | Garden tractor |
---|---|---|---|---|
1973 - 1974 | ||||
Sovereign Series | ||||
Garden tractor |
1973 - 1974 | |
---|---|
Sovereign Series | |
Garden tractor |
Production | |
---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA |
Variants | |
---|---|
3416S | shuttle |
3416H | hydrostatic |
Simplicity 3416S Engine | |
---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ... ![]() |
Simplicity 3416S Transmission | |
---|---|
4-speed shuttle | |
Transmission details ... ![]() |
Mechanical | |
---|---|
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
---|---|
Mid PTO | independent |
Clutch | mechanial idler pulley |
Dimensions & Tires | |
---|---|
Wheelbase | 48 inches
121 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ... ![]() |
Simplicity 3416S attachments | |
---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Attachment details ... ![]() |
3416S Serial Number Location | |
---|---|
![]() | |
Serial number tag on the left side of the platform, above the foot rest. |
Electrical | |
---|---|
Ground | negative |
Battery volts | 12 |
References | |
---|---|
![]() | |
Lawn Tractors published in 1973, by Simplicity | |
Tractors and Attachments published in 1974, by Simplicity |
