simplicity lawn tractors 4208
 | 1979 - 1986
4200 SeriesLawn tractor | 1979 - 1986 | 4200 Series | Lawn tractor |
|---|---|---|---|---|
1979 - 1986 | ||||
4200 Series | ||||
Lawn tractor | ||||
1979 - 1986 | |
|---|---|
4200 Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Simplicity 4208 Engine | |
|---|---|
8HP Briggs & Stratton 318cc 1-cyl gasoline | |
Engine details ...  |
Simplicity 4208 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. Vinyl weather cab available. |

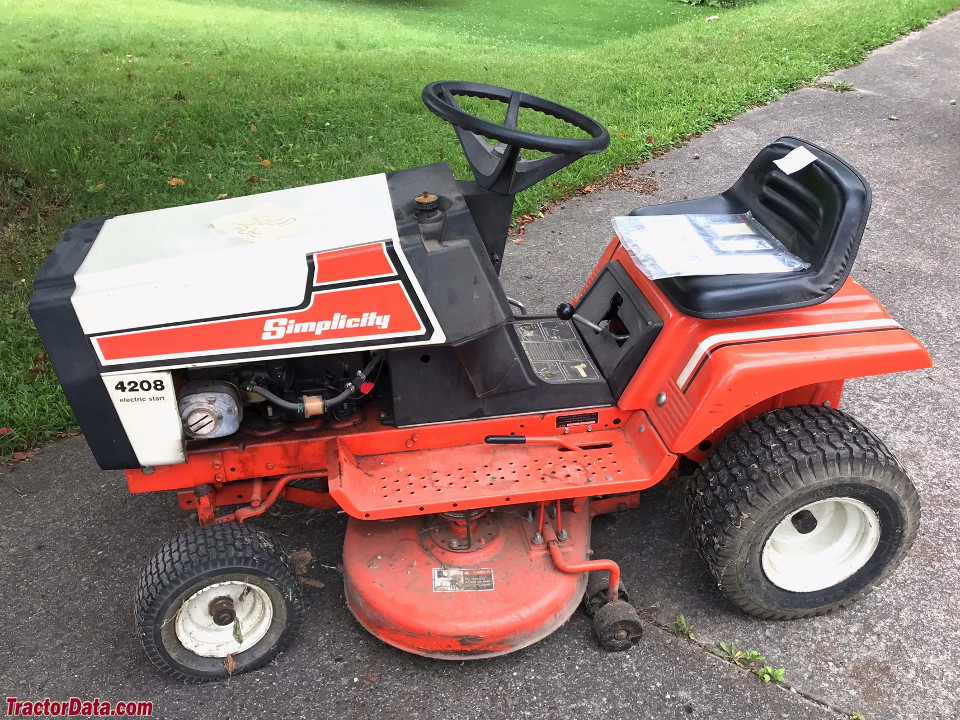

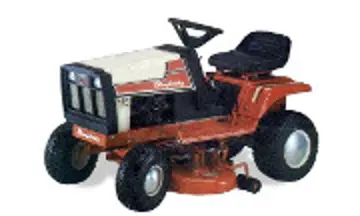

Photos | |
|---|---|
 | |
Simplicity 4208 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 309 to 505 pounds |
Front tire | 13x5.00-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Simplicity 4208 attachments | |
|---|---|
36" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
4208 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the tractor frame. |
Electrical | |
|---|---|
Ground | negative |
Charging amps | 3 |
Battery volts | 12 |
Battery AH | 32 |
References | |
|---|---|
 | |
Lawn & Garden Equipment published in 1979, by Simplicity | |
Riding Mowers and Garden Tractors published in 1982, by Simplicity |
