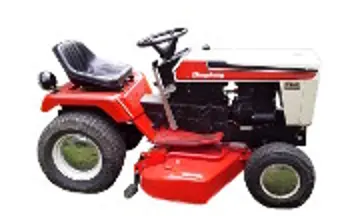

simplicity lawn tractors 7116
 | 1979 - 1986
7100 SeriesGarden tractor | 1979 - 1986 | 7100 Series | Garden tractor |
|---|---|---|---|---|
1979 - 1986 | ||||
7100 Series | ||||
Garden tractor | ||||
1979 - 1986 | |
|---|---|
7100 Series | |
Garden tractor |
Production | |
|---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA | |
Simplicity 7116 Engine | |
|---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ...  | |
Simplicity 7116 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Photos | |
|---|---|
 | |
Simplicity 7116 photos...  |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.7 inches
128 cm |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Simplicity 7116 attachments | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
7116 Serial Number Location | |
|---|---|
 | |
Serial number decal on the left side of the tractor frame, ahead of the seat. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual 7100 Series (1679625) published in 1986 | |
Lawn & Garden Equipment published in 1979, by Simplicity | |
Riding Mowers and Garden Tractors published in 1982, by Simplicity |
