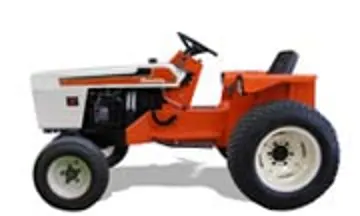

![]() | 1975 - 1980
PowrMax SeriesGarden tractor | 1975 - 1980 | PowrMax Series | Garden tractor |
---|---|---|---|---|
1975 - 1980 | ||||
PowrMax Series | ||||
Garden tractor |
1975 - 1980 | |
---|---|
PowrMax Series | |
Garden tractor |
Production | |
---|---|
Manufacturer | Simplicity |
Garden tractor | |
Built in Port Washington, Wisconsin, USA |
Variants | |
---|---|
720 | similar Allis Chalmers model |
Twin 20 | similar Montgomery Ward model |
Simplicity 9020 Engine | |
---|---|
19.5HP Onan 816cc 2-cyl gasoline | |
Fuel tank | 3.8 gal
14.4 L |
Engine details ... ![]() |
Simplicity 9020 Transmission | |
---|---|
hydrostatic | |
Transmission details ... ![]() |
Mechanical | |
---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. |
Photos | |
---|---|
![]() | |
Simplicity 9020 photos... ![]() |
Hydraulics | |
---|---|
Pressure | 500 psi
34.5 bar |
Total flow | 2.5 gpm
9.5 lpm |
Tractor hitch | |
---|---|
Rear Type | 0 |
Power Take-off (PTO) | |
---|---|
Rear PTO | independent |
Clutch | electric |
Rear PTO Type | 2000 |
Front PTO | independent |
Clutch | electric |
Front PTO Type | 3600 |
Dimensions & Tires | |
---|---|
Wheelbase | 56 inches
142 cm |
Weight | 1300 lbs
589 kg |
Front tire | 20x8.00-10 |
Rear tire | 29x12.00-15 |
Full dimensions and tires ... ![]() |
Simplicity 9020 attachments | |
---|---|
60" mid-mount mower deck | |
snowblower | |
blade | |
front-end loader | |
Attachment details ... ![]() |
Electrical | |
---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 20 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 45 |
References | |
---|---|
![]() | |
Lawn & Garden Power Equipment published in 1976, by Simplicity | |
Lawn & Garden Equipment published in 1978, by Simplicity | |
Lawn & Garden Equipment published in 1979, by Simplicity | |
![]() | |
Operator Manual System 9020 Pow'r Max (1651689) published in 1974 | |
Operator's Manual Model 9020 (1657027) published in 1978 | |
Operator's Manual Model 1690112 Loader | |
Operator's Manual System 9000 Loader (TP-1380) |
