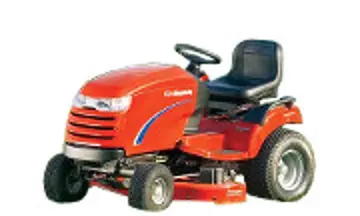

simplicity lawn tractors broadmoor 20 44
 | 2005 - 2009
Broadmoor SeriesLawn tractor | 2005 - 2009 | Broadmoor Series | Lawn tractor |
|---|---|---|---|---|
2005 - 2009 | ||||
Broadmoor Series | ||||
Lawn tractor | ||||
2005 - 2009 | |
|---|---|
Broadmoor Series | |
Lawn tractor |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Lawn tractor | |
Original price was $4,650 in 2009 | |
Variants | |
|---|---|
2620H | similar Massey Ferguson model |
1620H | similar AGCO model |
LT2044 | similar Snapper model |
Simplicity Broadmoor 20/44 Engine | |
|---|---|
20HP Vanguard 568cc 2-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Simplicity Broadmoor 20/44 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station with 15-inch adjustable seat. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 53 inches
134 cm |
Weight | 470 lbs
213 kg |
Front tire | 15x6.0-6 |
Rear tire | 22x10.0-10 |
Full dimensions and tires ...  | |
Simplicity Broadmoor 20/44 attachments | |
|---|---|
44" mid-mount mower deck | |
snowblower | |
blade | |
Attachment details ...  |
Electrical | |
|---|---|
Charging amps | 16 |
Battery CCA | 230 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator's Manual Broadmoor / 300 / 1600 / 2600 Series (1732286) published in 2008 | |
The Way To A Beautiful Lawn published in 2005, by Simplicity | |
Product Guide 2008 published by Simplicity |
