Simplicity Broadmoor 25/48
The Simplicity Broadmoor 25/48 is a tractor produced by Simplicity Lawn Tractors. Transmission: Tuff Torq K62.
Fuel & Capacities
3.6 gal
13.6 L
Transmission
Tuff Torq K62
Overview
 | 2015 -
Broadmoor SeriesLawn tractor |
|---|---|
2015 - | |
Broadmoor Series | |
Lawn tractor | |
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Lawn tractor | |
Original price | $4,899 (2015 ) |
$4,899 (2018 ) | |
Simplicity Broadmoor 25/48 Engine | |
|---|---|
25HP Briggs & Stratton 724cc 2-cyl gasoline | |
Fuel tank | 3.6 gal
13.6 L |
Engine details ...  | |
Simplicity Broadmoor 25/48 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station. Soft-side weather cab optional. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 15x6 |
Rear tire | 22x9.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 230 |
Battery volts | 12 |
Transmission
Transmission — Tuff Torq K62
Transmission | Tuff Torq K62 |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Broadmoor 25/48 Tires | |
|---|---|
Lawn/turf front | 15x6 |
Lawn/turf rear | 22x9.5 |
Dimensions | |
|---|---|
Length | 75 inches
190 cm |
Width | 56 inches
142 cm |
Height | 43 inches
109 cm |
Front axle | Cast-iron |
SCS suspension rear axle | |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 48 inches
121 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | infinite |
Photos

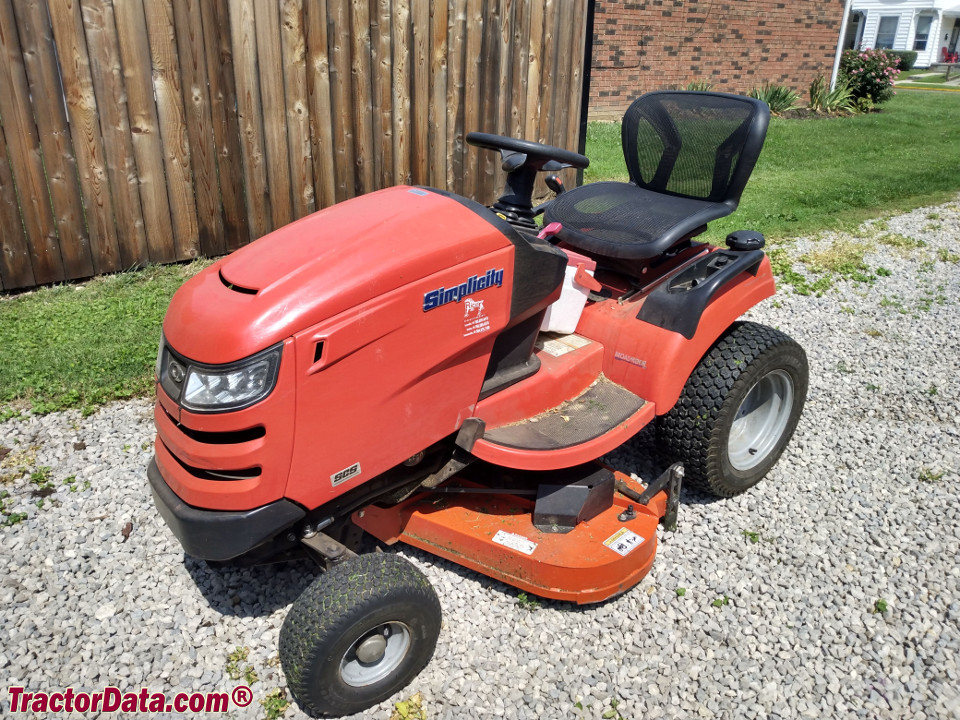

Simplicity Broadmoor 25/48, left side.

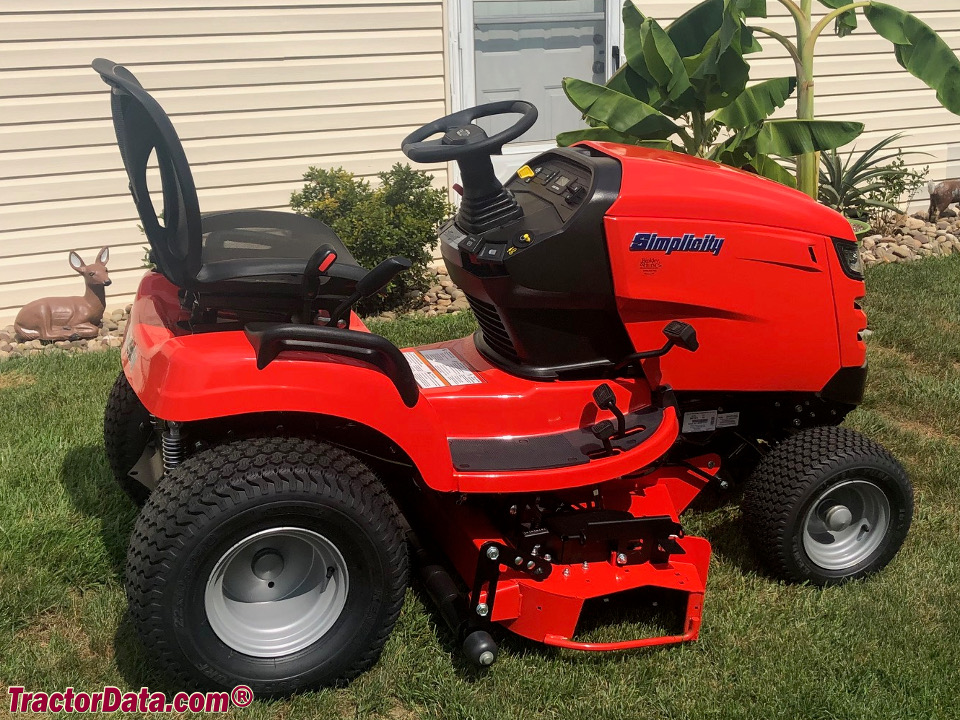

Simplicity Broadmoor 25/48 lawn tractor.

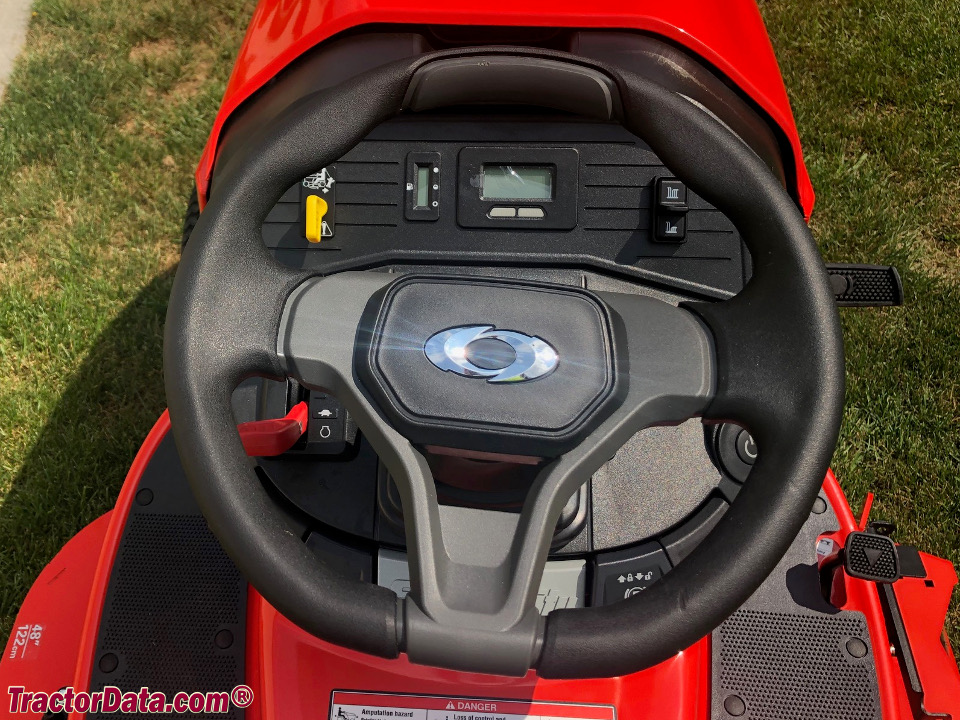

Simplicity Broadmoor 25/48 operator station and controls.
Simplicity Lawn Tractors Simplicity Broadmoor 25/48 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Simplicity Lawn Tractors Simplicity Broadmoor 25/48.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
