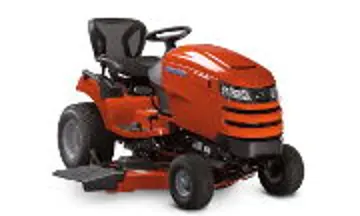

Simplicity Broadmoor 27/52
The Simplicity Broadmoor 27/52 is a tractor produced by Simplicity Lawn Tractors. Transmission: Tuff Torq K62.
Fuel & Capacities
3.6 gal
13.6 L
Transmission
Tuff Torq K62
Overview
 | 2013
Broadmoor SeriesLawn tractor
Broadmoor Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Briggs & Stratton) |
Lawn tractor | |
Original price was $5,099 in 2013 | |
Simplicity Broadmoor 27/52 Engine | |
|---|---|
27HP Briggs & Stratton 2-cyl gasoline | |
Fuel tank | 3.6 gal
13.6 L |
Engine details ...  | |
Simplicity Broadmoor 27/52 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Disc brakes | |
Open operator station with low-back mesh seat. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 16.00x6.5-8 |
Rear tire | 23x10.5-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery CCA | 230 |
Battery volts | 12 |
Transmission
Transmission — Tuff Torq K62
Transmission | Tuff Torq K62 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Simplicity Broadmoor 27/52 Tires | |
|---|---|
Lawn/turf front | 16.00x6.5-8 |
Lawn/turf rear | 23x10.5-12 |
Dimensions | |
|---|---|
Length | 70 inches
177 cm |
Width | 62 inches
157 cm |
Height | 43 inches
109 cm |
Front axle | Cast-iron |
SCS-2 suspension rear axle | |
Attachments
52" Mower deck | |
|---|---|
Type | mid-mount Simplicity |
3-blade with manual lift | |
Cutting width | 52 inches
132 cm |
Cut height | 1 to 3.75 inch
2 to 9 cm |
Cut positions | infinite |
Photos

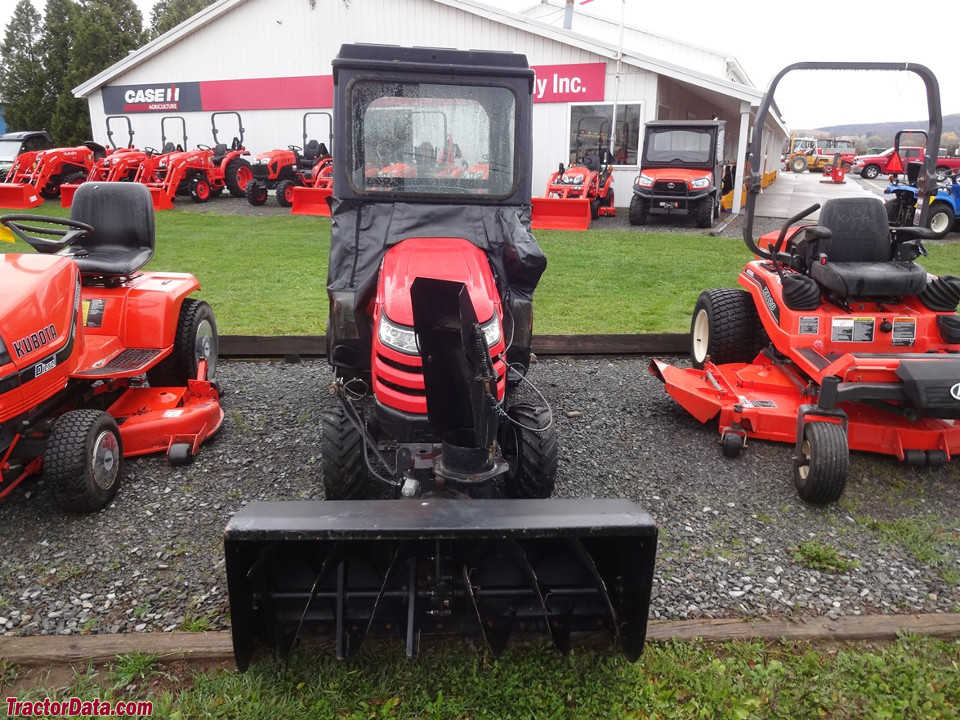

Simplicity Broadmoor 27/52 with weather cab and snowblower.

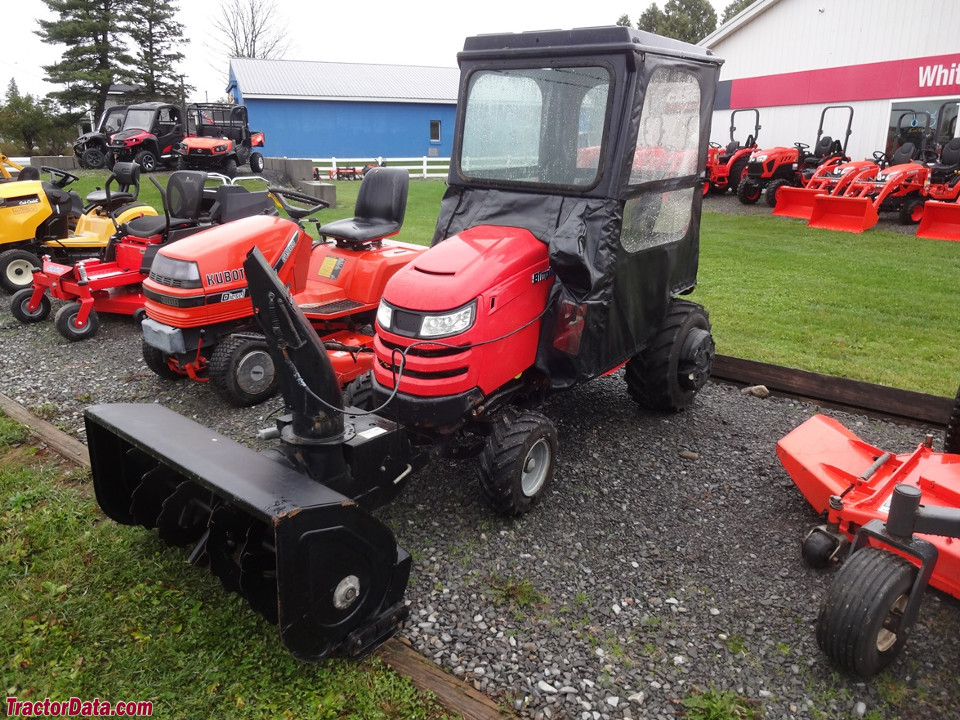

Simplicity Broadmoor 27/52 with weather cab and snowblower.

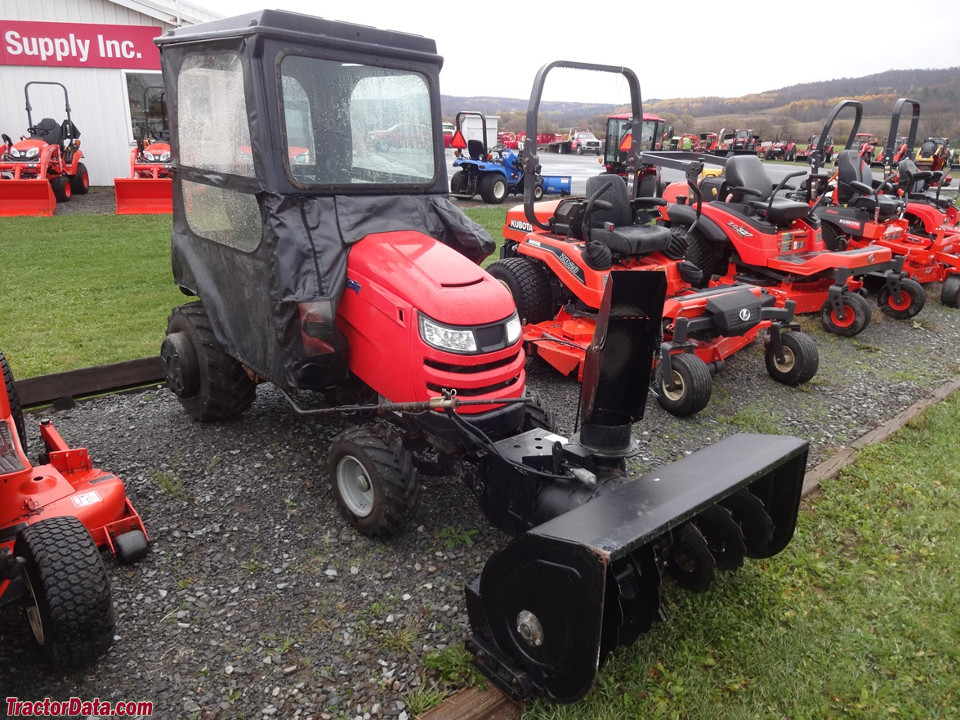

Simplicity Broadmoor 27/52 with weather cab and snowblower.

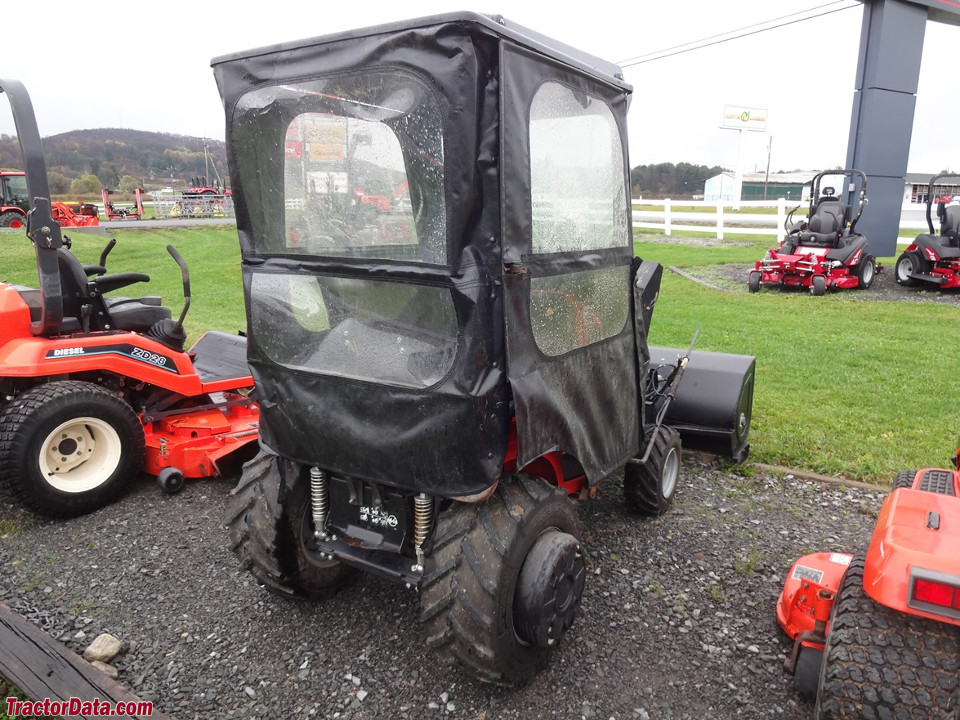

Simplicity Broadmoor 27/52 with weather cab and snowblower.

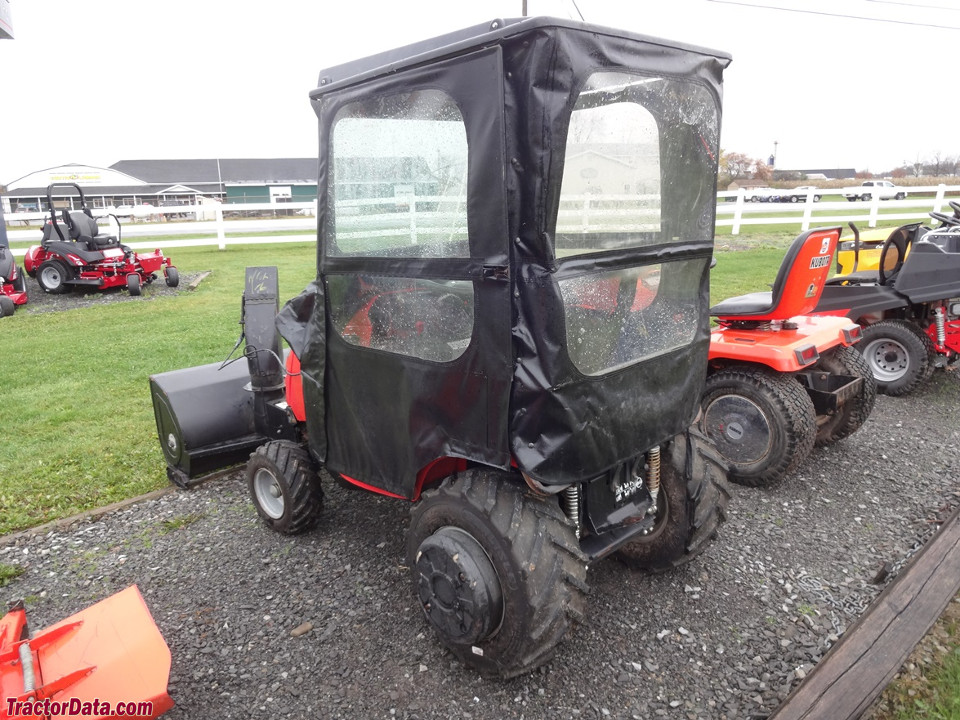

Simplicity Broadmoor 27/52 with weather cab and snowblower.

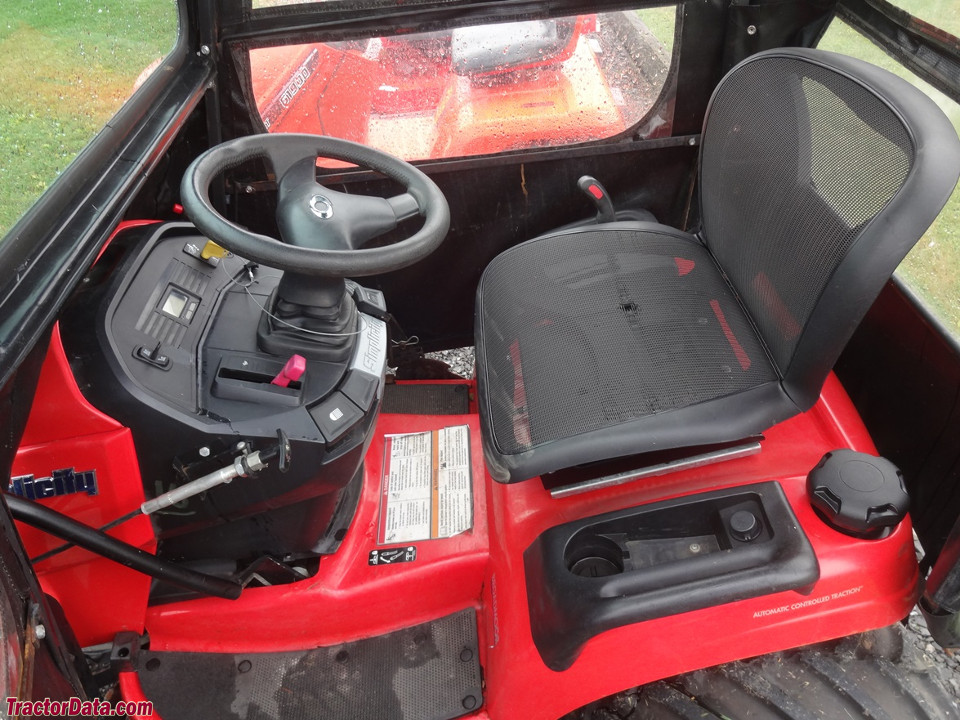

Simplicity Broadmoor 27/52 controls.

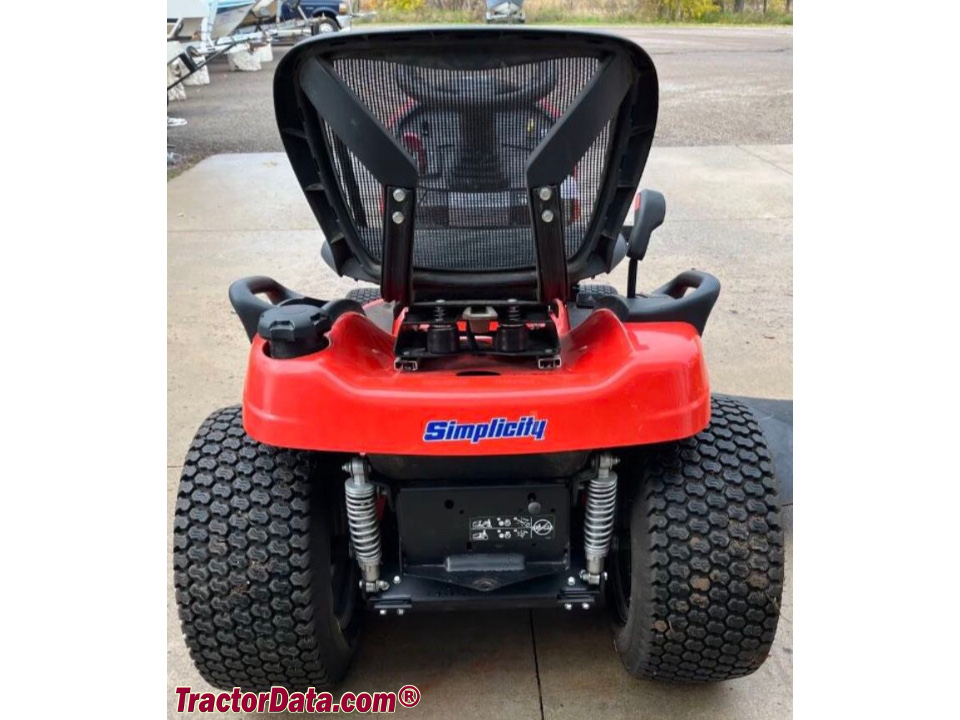

Simplicity Broadmoor 27/52, rear view.

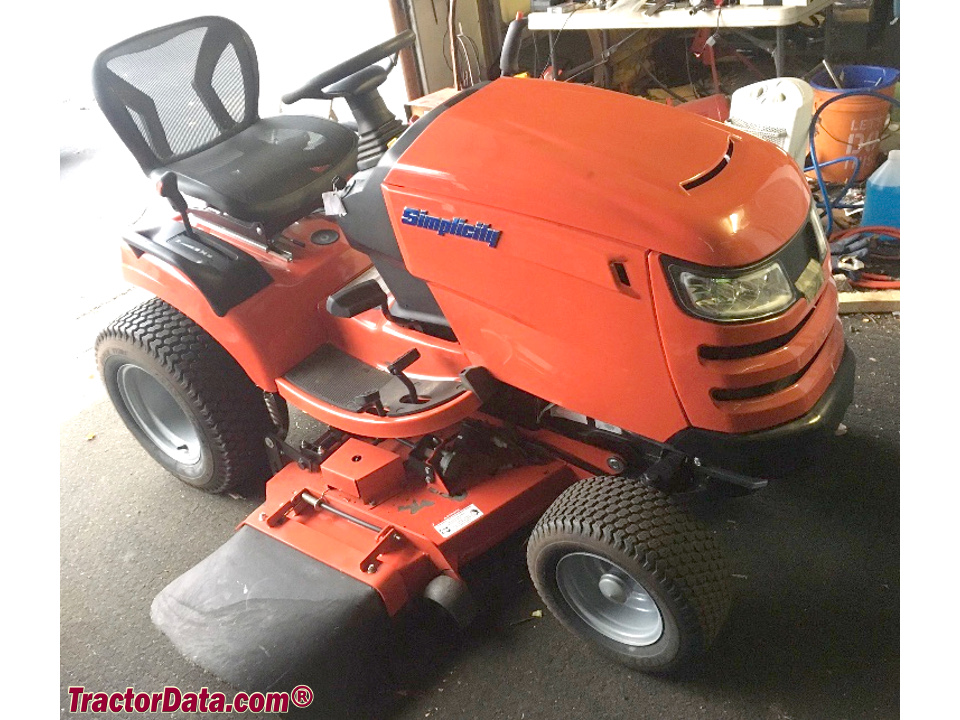

Simplicity Broadmoor 27/52 with mower deck.
