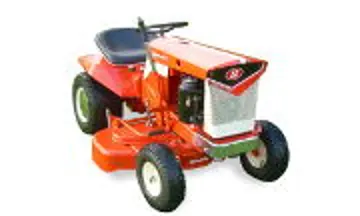

Simplicity Broadmoor 717 990425
The Simplicity Broadmoor 717 990425 is a tractor produced by Simplicity Lawn Tractors. Transmission: 2 forward and 1 reverse. Operating weight: 96 lbs 43 kg.
Transmission
2 forward and 1 reverse
Operating Weight
96 lbs
43 kg
Overview
 | 1968
Broadmoor SeriesLawn tractor
Broadmoor Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Simplicity (a part of Allis Chalmers) |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $599 in 1968 | |
Variants | |
|---|---|
990425 | electric start |
990424 | recoil start |
Simplicity Broadmoor 717 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Engine details ...  |
Simplicity Broadmoor 717 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 410 lbs
185 kg |
Front tire | 5.30x6 |
Rear tire | 9.50x8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Improve your lot in life published in 1968, by Simplicity |
Transmission
Transmission — 2 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 2 forward and 1 reverse |
Dimensions
Simplicity Broadmoor 717 Tires | |
|---|---|
Lawn/turf front | 5.30x6 |
Lawn/turf rear | 9.50x8 |
Dimensions | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Length | 57 inches
144 cm |
Height (steering wheel) | 33.5 inches
85 cm |
Height (hood) | 31.5 inches
80 cm |
Shipping weight | 410 lbs
185 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Simplicity 990422 |
2-blade with manual lift | |
Cutting width | 36 inches
91 cm |
Weight | 96 lbs
43 kg |
Cut height | 1.625 to 3.125 inch
4 to 7 cm |
Photos

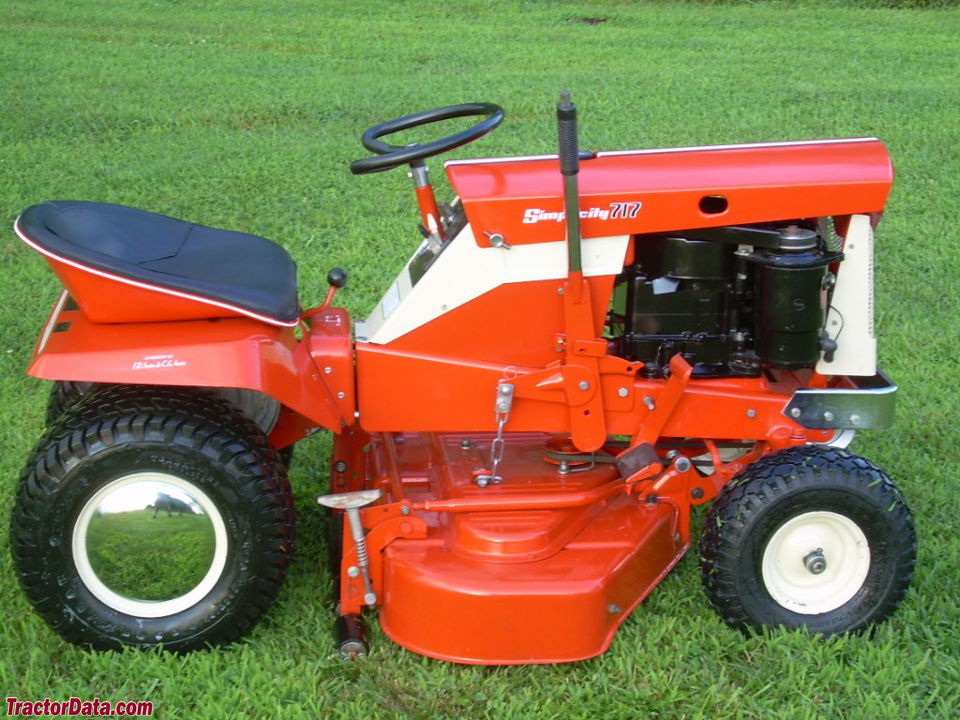

Simplicity Broadmoor 717
Simplicity Broadmoor 717

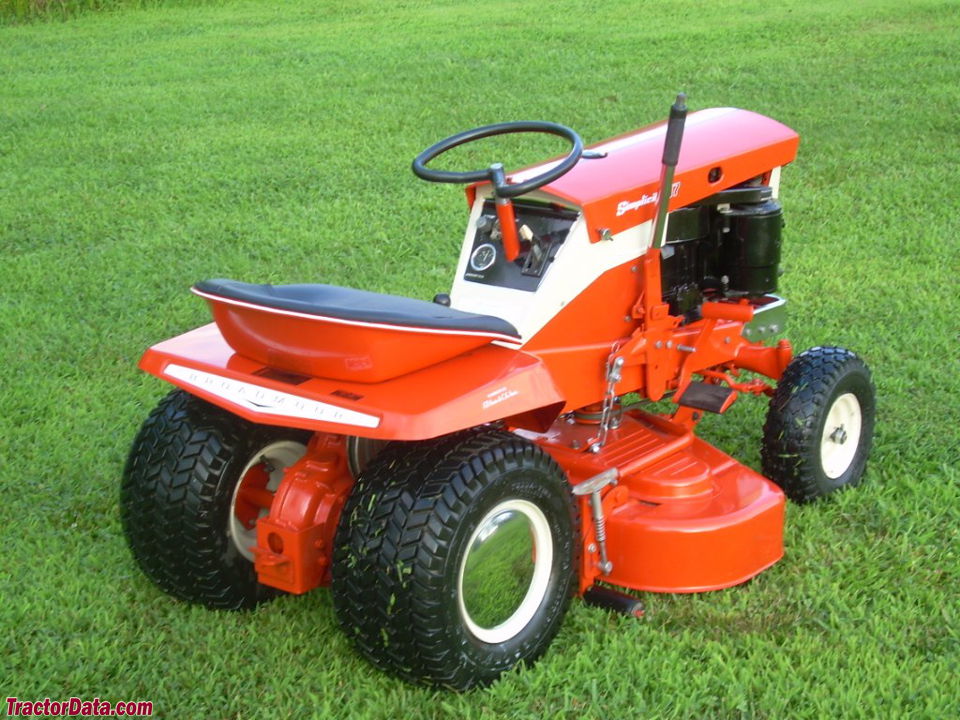

Simplicity Broadmoor 717

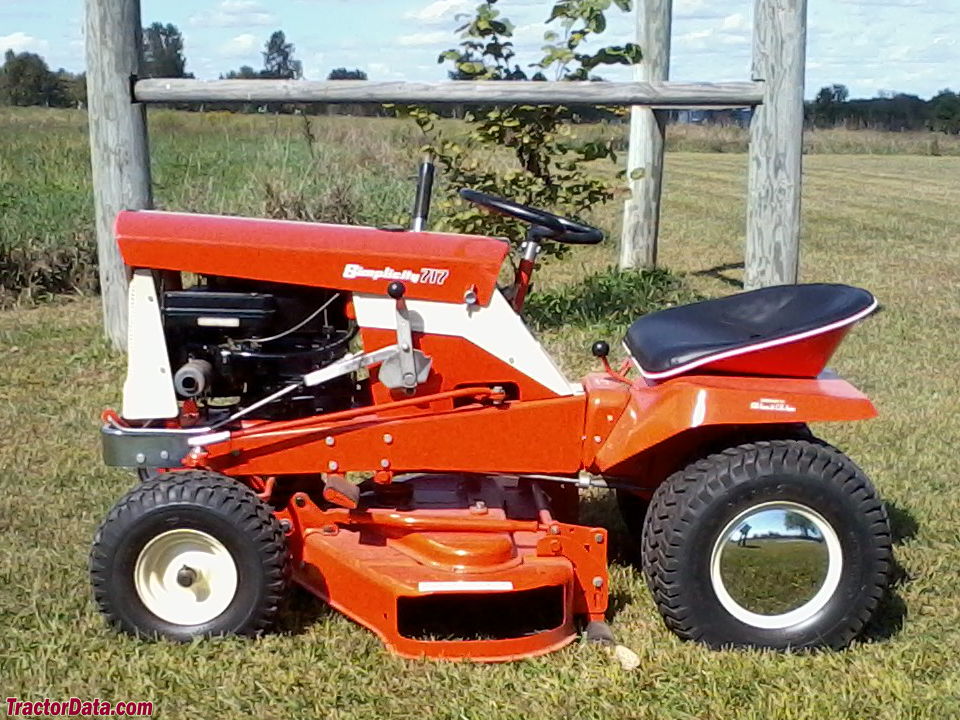

Simplicity Broadmoor 717, left side.

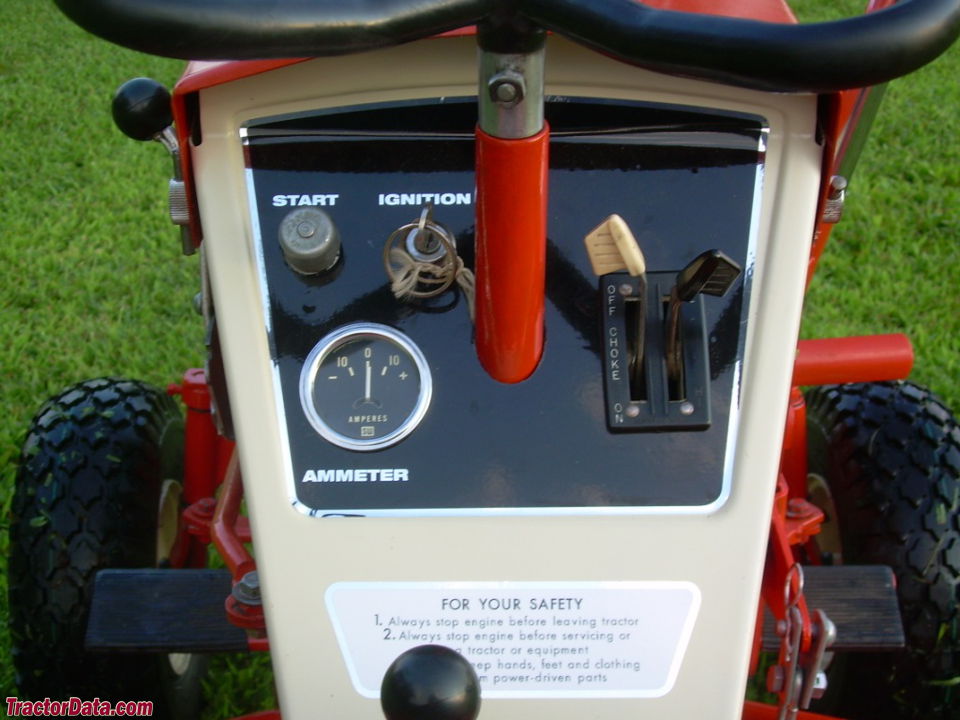

Simplicity Broadmoor 717 controls.

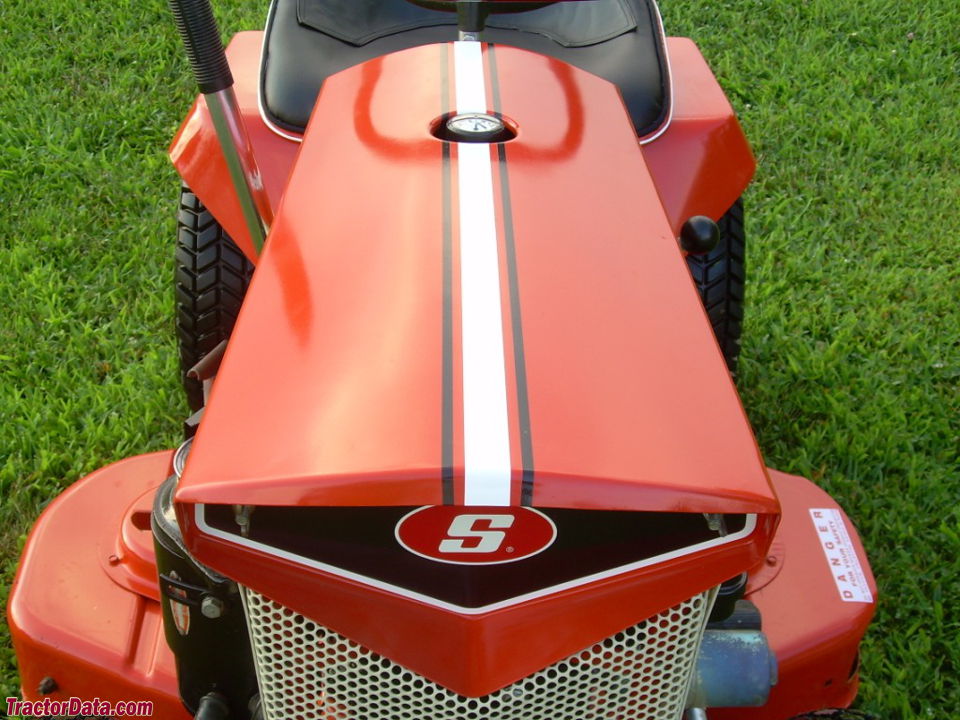

Simplicity Broadmoor 717 hood detail.
