Snapper 307X

The Snapper 307X is a tractor produced by Snapper Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 5 forward and 1 reverse. Operating weight: 278 lbs 126 kg.

Overview

	1968 - 1971 Comet SeriesRiding lawn mower Comet Series Riding lawn mower

Production
Manufacturer	Snapper
Riding lawn mower

Variants
307X	manual start
307XS	electric start

Snapper 307X Engine
7HP Briggs & Stratton 275cc 1-cyl gasoline
Engine details ...

Snapper 307X Transmission
5-speed friction disc
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Weight	278 lbs 126 kg
Rear tire	16x6.50-8
Full dimensions and tires ...

References
Snapper Mowers and Tillers published in 1970

Engine

Engine Detail — 275 cc / 16.79 ci Gasoline

Manufacturer	Briggs & Stratton 170000
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	275 cc 16.79 ci
Bore/Stroke	3.00x2.375 inches 76 x 60 mm
Power	7 hp 5.2 kW
Starter	manual recoil
	electric OptOptional
Starter volts	12

Transmission

Transmission — 5 forward and 1 reverse friction disc

Type	friction disc
Gears	5 forward and 1 reverse

Dimensions

Snapper 307X Tires
Lawn/turf rear	16x6.50-8

Dimensions
Weight	278 lbs 126 kg

Attachments

30" Mower deck
Type	mid-mount Snapper
	1-blade
Cutting width	30 inches 76 cm
Cut height	1 to 4 inch 2 to 10 cm
Cut positions	8

Photos

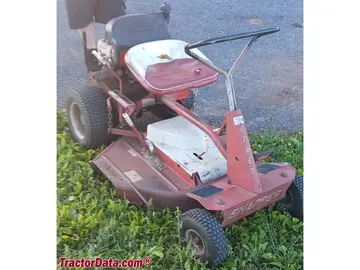

Snapper 307X
