Snapper LT12
The Snapper LT12 is a tractor produced by Snapper Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The rated power output is 12.5 hp 9.3 kW. Transmission: 12 forward and 2 reverse.
Overview
 | 1986 - 1988
Lawn tractor |
|---|---|
1986 - 1988 | |
Lawn tractor | |
1986 - 1988 | |
|---|---|
Lawn tractor |
Production | |
|---|---|
Manufacturer | Snapper |
Lawn tractor | |
Variants | |
|---|---|
LT1233 | 33-inch deck |
LT1241 | 41-inch deck |
Snapper LT12 Engine | |
|---|---|
12.5HP Briggs & Stratton 655cc 2-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Snapper LT12 Transmission | |
|---|---|
12-speed disc | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Photos | |
|---|---|
 | |
Snapper LT12 photos...  |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electro-magnetic |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Front tire | 15x6.00-6 |
Rear tire | 21x7.00-10 |
Full dimensions and tires ...  | |
Snapper LT12 attachments | |
|---|---|
33" mid-mount mower deck | |
41" mid-mount mower deck | |
blade | |
Attachment details ...  |
LT12 Serial Numbers | |
|---|---|
Location: | Serial number decal on the rear fender deck of the tractor, behind the seat. |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn Tractors published in 1989, by Snapper |
Engine
| 1986 - 1988
Lawn tractor |
|---|---|
1986 - 1988 | |
Lawn tractor | |
1986 - 1988 | |
|---|---|
Lawn tractor |
Engine Detail | |
|---|---|
Briggs & Stratton 404437 | |
gasoline | |
2-cylinder | |
air-cooled horizontal-shaft opposed-twin | |
Displacement | 655 cc
40 ci |
Bore/Stroke | 3.44x2.16 inches
87 x 55 mm |
Power | 12.5 hp
9.3 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1986 - 1988
Lawn tractor |
|---|---|
1986 - 1988 | |
Lawn tractor | |
1986 - 1988 | |
|---|---|
Lawn tractor |
Transmission | |
|---|---|
Type | shaft-driven disc |
Gears | 12 forward and 2 reverse |
Snapper variable disc drive with 6 notched speed settings and two geared ranges. | |
Speeds | |
|---|---|
 |
Snapper LT12 Transmission | |
|---|---|
 | |
1 | Range shift |
2 | Differential |
3 | Axle shaft |
4 | Drive Disc |
5 | Driven Disc |
Dimensions
| 1986 - 1988
Lawn tractor |
|---|---|
1986 - 1988 | |
Lawn tractor | |
1986 - 1988 | |
|---|---|
Lawn tractor |
Snapper LT12 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 21x7.00-10 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Attachments
| 1986 - 1988
Lawn tractor |
|---|---|
1986 - 1988 | |
Lawn tractor | |
1986 - 1988 | |
|---|---|
Lawn tractor |
Attachment overview | |
|---|---|
33" mid-mount mower deck | |
41" mid-mount mower deck | |
Blade |
Photos

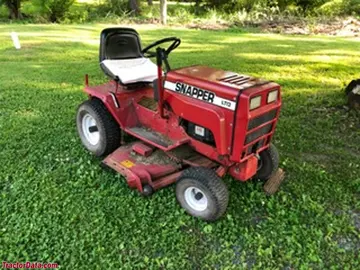

Snapper LT12
Snapper LT12
Snapper LT12 with bagger, left side.
