Snapper LT145H38DBV LE1438H

The Snapper LT145H38DBV LE1438H is a tractor produced by Snapper Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The rated power output is 14.5 hp 10.8 kW. Transmission: Tuff Torq K55. Operating weight: 402 lbs 182 kg.

Overview

	1997 - 1999 Lawn tractor
1997 - 1999
Lawn tractor

1997 - 1999
Lawn tractor

Production
Manufacturer	Snapper
Lawn tractor

Snapper LT145H38DBV Engine
14.5HP Briggs & Stratton 465cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Snapper LT145H38DBV Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Photos
Snapper LT145H38DBV photos...

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Weight	402 lbs 182 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Snapper LT145H38DBV attachments
38" mid-mount mower deck
snowblower
blade
Attachment details ...

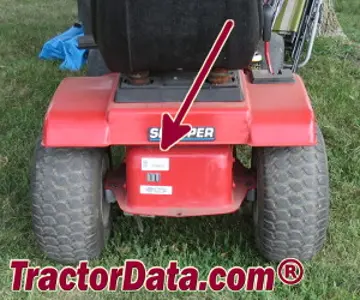

LT145H38DBV Serial Number Location

LT145H38DBV Serial Numbers
FAQ: How to read a serial number table.

Electrical
Ground	negative
Charging amps	3
Battery CCA	165
Battery volts	12

References
Legendary Quality published in 1997, by Snapper
Product Catalog published in 1998, by Snapper

Engine

	1997 - 1999 Lawn tractor
1997 - 1999
Lawn tractor

1997 - 1999
Lawn tractor

Engine Detail
Briggs & Stratton 287707
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	465 cc 28.4 ci
Bore/Stroke	3.44x3.06 inches 87 x 78 mm
Power (gross)	14.5 hp 10.8 kW
Air cleaner	dual dry element
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

	1997 - 1999 Lawn tractor
1997 - 1999
Lawn tractor

1997 - 1999
Lawn tractor

Transmission
Transmission	Tuff Torq K55
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Speeds

Snapper LT145H38DBV Transmission

Dimensions

	1997 - 1999 Lawn tractor
1997 - 1999
Lawn tractor

1997 - 1999
Lawn tractor

Snapper LT145H38DBV Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Weight	402 lbs 182 kg

Attachments

	1997 - 1999 Lawn tractor
1997 - 1999
Lawn tractor

1997 - 1999
Lawn tractor

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Snapper
	2-blade
Cutting width	38 inches 96 cm
Cut height	1.25 to 3.75 inch 3 to 9 cm
Cut positions	6

Photos

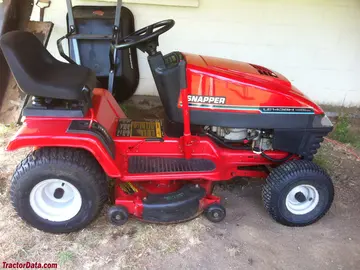

Snapper LT145H38DBV LE1438H, right side.

Snapper LT145H38DBV LE14.538H, left side.

Snapper LT145H38DBV LE14.538H, left side.

Snapper LT145H38DBV LE14.538H operator station and controls.
