Springfield 62TE-7
The Springfield 62TE-7 is a tractor produced by Springfield Lawn Tractors. It is equipped with a 276 cc 16.9 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 493 lbs 223 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
493 lbs
223 kg
Overview
 | 1962
Suburban SeriesGarden tractor
Suburban Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Springfield (a part of Quick Manufacturing) |
Garden tractor | |
Built in Springfield, Ohio, USA | |
Springfield 62TE-7 Engine | |
|---|---|
7HP Kohler 276cc 1-cyl gasoline | |
Engine details ...  |
Springfield 62TE-7 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Mechanical drum brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 44 inches
111 cm |
Weight | 493 lbs
223 kg |
Front tire | 4.50x8 |
Rear tire | 6.00x12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Suburban Tractor - New 7 H.P. published in 1962, by Springfield |
Engine
Engine Detail — 276 cc / 16.9 ci Gasoline
Manufacturer | Kohler KV-161S |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 276 cc
16.9 ci |
Bore/Stroke | 2.94x2.50 inches
75 x 64 mm |
Power (gross) | 7 hp
5.2 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Springfield 62TE-7 Tires | |
|---|---|
Lawn/turf front | 4.50x8 |
Lawn/turf rear | 6.00x12 |
Dimensions | |
|---|---|
Wheelbase | 44 inches
111 cm |
Length | 63 inches
160 cm |
Width | 34 inches
86 cm |
Height | 34 inches
86 cm |
Shipping weight | 493 lbs
223 kg |
Ground clearance | 8 inches
20 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
36" Mower deck | |
|---|---|
Type | mid-mount Springfield 61RMT |
2-blade | |
Cutting width | 36 inches
91 cm |
Overall width | 38 inches
96 cm |
Cut height | 2 to 4 inch
5 to 10 cm |
Cut positions | 5 |
Photos

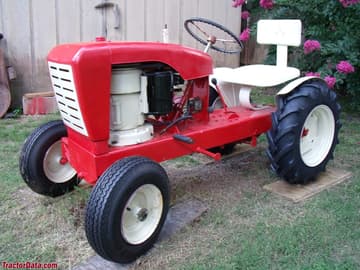

Springfield 62TE-7
Rear view of the Springfield 62TE-7 with gardening implements.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Springfield Lawn Tractors Springfield 62TE-7.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Springfield Lawn Tractors Springfield 62TE-7 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Springfield Lawn Tractors Springfield 62TE-7.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
