Steiger 9150
The Steiger 9150 is a tractor produced by Steiger. It is equipped with a 611 ci 10.0 L engine. The listed engine power is Diesel (gross): 280 hp / 208.8 kW. Transmission: 12 forward and 2 reverse. Operating weight: 23000 lbs 10432 kg.
Engine Power
Diesel (gross): 280 hp / 208.8 kW
Fuel & Capacities
170 gal
643.5 L
Transmission
12 forward and 2 reverse
Operating Weight
23000 lbs
10432 kg
Overview
 | 1986 - 1990
9100 SeriesFour-wheel Drive (4WD) tractor
9100 Series
Four-wheel Drive (4WD) tractor |
|---|
Series map: 913091509170220.0hp280.0hp335.0hp
Note: the Steiger model 9150 is the same as the CaseIH 9150. The following data is from the 9150 listing. |
Production | |
|---|---|
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Original price was $95,000 in 1990 | |
Steiger 9150 Engine | |
|---|---|
Cummins 10.0L 6-cyl diesel | |
Engine details ...  |
Steiger 9150 Transmission | |
|---|---|
12-speed full power shift | |
Transmission details ...  |
Steiger 9150 Power | |
|---|---|
Engine (gross) | 280 hp
208.8 kW |
PTO (claimed) | 259 hp
193.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | inboard planetary |
outboard planetary OptOptional | |
Steering | hydrostatic power |
Hydraulic disc brakes | |
Cab standard with air-conditioning. | |
Capacity | |
|---|---|
Fuel | 170 gal
643.5 L |
Hydraulic system | 18 gal
68.1 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 18 gal
68.1 L |
Pressure | 2500 psi
172.4 bar |
Valves | 3 to 4 |
Total flow | 27 gpm
102.2 lpm |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Rear lift | 12750 lbs
5783 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent OptOptional |
Rear PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 130 inches
330 cm |
Weight | 23000 lbs
10432 kg |
Front tire | 20.8-38 |
Rear tire | 20.8-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 100 |
Batteries | 3 |
Battery volts | 12 |
Engine
Series map: 913091509170220.0hp280.0hp335.0hp
Note: the Steiger model 9150 is the same as the CaseIH 9150. The following data is from the 9150 listing. |
Engine Detail — 611 ci / 10.0 L Diesel
Manufacturer | Cummins LTA-10 |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled inline |
Displacement | 611 ci
10.0 L |
Bore/Stroke | 4.95x5.35 inches
126 x 136 mm |
Power (gross) | 280 hp
208.8 kW |
Rated RPM | 2100 |
Torque | 910 lb-ft
1234.0 Nm |
Torque RPM | 1300 |
Starter volts | 12 |
Oil capacity | 33 qts
31.2 L |
Coolant capacity | 60 qts
56.8 L |
Transmission
Series map: 913091509170220.0hp280.0hp335.0hp
Note: the Steiger model 9150 is the same as the CaseIH 9150. The following data is from the 9150 listing. |

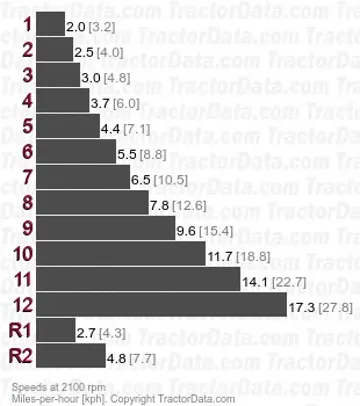

Transmission — 12 forward and 2 reverse full power shift
Type | full power shift |
Gears | 12 forward and 2 reverse |
Clutch | hydraulic wet disc |
With 24.5x32 tires. | |
 | |
Dimensions
Series map: 913091509170220.0hp280.0hp335.0hp
Note: the Steiger model 9150 is the same as the CaseIH 9150. The following data is from the 9150 listing. |
Steiger 9150 Tires | |
|---|---|
Ag front | 20.8-38 |
Ag rear | 20.8-38 |
Dimensions | |
|---|---|
Wheelbase | 130 inches
330 cm |
Length | 272.9 inches
693 cm |
Width | 93.5 inches (fenders)
237 cm |
Height (hood) | 86.6 inches
219 cm |
Height (exhaust) | 143 inches
363 cm |
Shipping weight | 23000 lbs
10432 kg |
Max weight | 32000 lbs
14515 kg |
Ground clearance | 23 inches
58 cm |
Front axle | Bar: 4 by 120 inches
101 by 3048 mm |
Bar rear axle | 4 by 120 inches
101 by 3048 mm |
Recommended Implements & Sizing Guide
Engineering recommendations for Steiger 9150 based on its 280 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁 | Commercial / Field Scale | High horsepower articulated/4WD field plowing. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙 | Commercial / Field Scale | Broad-acre grain tillage for high-drawbar tractors. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Steiger 9150.
Estimated Continuous Field Runtime: 11.7 hrs
Approximately 11.7 hours of continuous field operation at ~75% rated power on a full tank (170 gal / 643.5 L).
Estimated 75% Load Fuel Burn~14.6 gal/hr (55.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Steiger 9150 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Steiger 9150.
Converted Equivalents:
Horsepower (HP)280 hp
Kilowatts (kW)208.8 kW
Metric Horsepower (PS / CV)283.9 PS
Direct Competitor Comparison
Compare Steiger 9150 against same-era industry alternatives in the same horsepower class.
Current Model
Steiger
Steiger 9150
Engine Power:Diesel (gross): 280 hp / 208.8 kW
★ Baseline Reference
