Steiger Cougar 1000

The Steiger Cougar 1000 is a tractor produced by Steiger. It is equipped with a 611 ci 10.0 L engine. The listed engine power is Diesel (listed): 280 hp / 208.8 kW; Diesel (listed): 280 hp / 208.8 kW. Transmission: 12 forward and 2 reverse. Operating weight: 23000 lbs 10432 kg.

Overview

	1986 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Steiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA

Variants
9150	similar CaseIH model

Steiger Cougar 1000 Transmission
12-speed full power shift
Transmission details ...

Steiger Cougar 1000 Power
Engine	280 hp 208.8 kW
PTO (claimed)	250 hp 186.4 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.

Capacity
Fuel	170 gal 643.5 L
Hydraulic system	18 gal 68.1 L

Hydraulics
Type	closed center load sensing
Capacity	18 gal 68.1 L
Pressure	2500 psi 172.4 bar
Valves	2 to 4
Pump flow	27 gpm 102.2 lpm

Tractor hitch
Rear Type	III OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	130 inches 330 cm
Weight	23000 lbs 10432 kg
Front tire	18.4x38
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	100
Batteries	3
Battery CCA	625
Battery volts	12

References
Cougar 1000 published in 1986, by Steiger
Steiger Tractor, Inc. published in 1986

Engine

Engine options
Caterpillar 10.5L 6-cyl diesel
Cummins 10.0L 6-cyl diesel

Engine Detail — 638 ci / 10.5 L Diesel

Manufacturer	Caterpillar 3306B DITA
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled inline
Displacement	638 ci 10.5 L
Bore/Stroke	4.75x6.00 inches 121 x 152 mm
Power	280 hp 208.8 kW
Air cleaner	dry with centrifugal precleaner
Torque	910 lb-ft 1234.0 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Coolant capacity	60 qts 56.8 L

Engine Detail — 611 ci / 10.0 L Diesel

Manufacturer	Cummins LTA-10
Configuration	turbocharged intercooled diesel, 6-cylinder, liquid-cooled
Displacement	611 ci 10.0 L
Bore/Stroke	4.95x5.35 inches 126 x 136 mm
Power	280 hp 208.8 kW
Air cleaner	dry with centrifugal precleaner
Torque	910 lb-ft 1234.0 Nm
Torque RPM	1300
Starter	electric
Starter volts	12
Coolant capacity	60 qts 56.8 L

Transmission

Transmission — 12 forward and 2 reverse full power shift

Type	full power shift
Gears	12 forward and 2 reverse
Clutch	hydraulic wet disc
With 18.4x38 tires.

Dimensions

Steiger Cougar 1000 Tires
Ag front	18.4x38
Ag rear	18.4x38

Dimensions
Wheelbase	130 inches 330 cm
Length	272.9 inches 693 cm
Width	36 inches*Frame 91 cm
	64.3 inches*Cab 163 cm
	93.5 inches*Fenders 237 cm
	144.3 inches*Outer tires with duals 366 cm
Shipping weight	23000 lbs 10432 kg
Max weight	32000 lbs 14515 kg
Front axle	Bar: 4.0 by 120 inches 101 by 3048 mm
Front axle	Outboard planetary
Bar rear axle	4.0 by 120 inches 101 by 3048 mm
Outboard planetary rear axle

Steiger Cougar 1000 Height
Hood	86.6 inches 219 cm
Cab	135 inches 342 cm
Exhaust	143 inches 363 cm

Photos

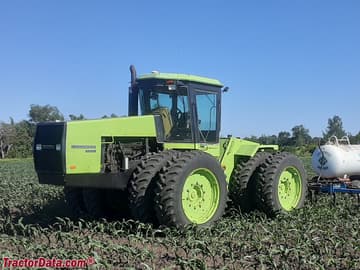

Steiger Cougar 1000
