Steiger Cougar IV CM-280
The Steiger Cougar IV CM-280 is a tractor produced by Steiger. It is equipped with a 893 ci 14.6 L engine. The rated power output is 280 hp 208.8 kW. Transmission: 20 forward and 4 reverse. Operating weight: 25011 lbs 11344 kg.
Engine Power
280 hp
208.8 kW
Fuel & Capacities
267 gal
1010.6 L
Transmission
20 forward and 4 reverse
Operating Weight
25011 lbs
11344 kg
Steiger Cougar IV CM-280 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1983 - 1985
IV SeriesFour-wheel Drive (4WD) tractor |
|---|---|
1983 - 1985 | |
IV Series | |
Four-wheel Drive (4WD) tractor | |
Production | |
|---|---|
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Steiger Cougar IV CM-280 Engine | |
|---|---|
Caterpillar 14.6L 6-cyl diesel | |
Fuel tank | 267 gal
1010.6 L |
Engine details ...  | |
Steiger Cougar IV CM-280 Transmission | |
|---|---|
20-speed gear | |
Transmission details ...  |
Steiger Cougar IV CM-280 Power | |
|---|---|
Engine | 280 hp
208.8 kW |
Drawbar (claimed) | 252 hp
187.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Articulated power steering | |
Hydraulic disc brakes | |
Steiger Safari Cab standard with air-conditioning. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2250 psi
155.1 bar |
Valves | 3 to 5 |
Pump flow | 31 gpm
117.3 lpm |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 129 inches
327 cm |
Weight | 25011 lbs
11344 kg |
Front tire | 18.4x38 |
Rear tire | 18.4x38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 90 |
Batteries | 3 |
Battery volts | 12 |
References | |
|---|---|
 | |
Cougar IV published in 1983, by Steiger | |
The Steiger Line published in 1983 |
Engine
Engine Detail — 893 ci / 14.6 L Diesel
Manufacturer | Caterpillar 3406 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled inline |
Displacement | 893 ci
14.6 L |
Bore/Stroke | 5.40x6.50 inches
137 x 165 mm |
Power | 280 hp
208.8 kW |
Rated RPM | 2100 |
Operating RPM | 1700-2100 |
Torque | 945 lb-ft
1281.4 Nm |
Torque RPM | 1200 |
Starter type | electric |
Oil capacity | 36 qts
34.1 L |
Coolant capacity | 70 qts
66.2 L |
Transmission

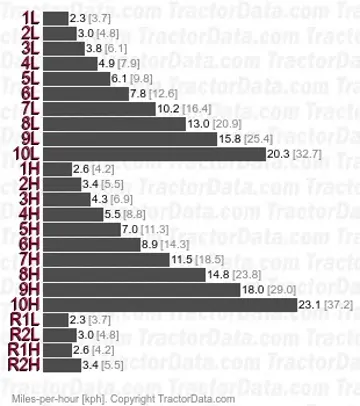

Transmission — 20 forward and 4 reverse gear
Type | gear |
Gears | 20 forward and 4 reverse |
With 18.4x38 tires. | |
 | |
Dimensions
Steiger Cougar IV CM-280 Tires | |
|---|---|
Ag front | 18.4x38 |
Ag rear | 18.4x38 |
Ag front | 20.8x34 |
20.8x38 | |
23.1x34 | |
24.5x32 | |
30.5x32 | |
Ag rear | 20.8x34 |
20.8x38 | |
23.1x34 | |
24.5x32 | |
30.5x32 | |
Dimensions | |
|---|---|
Wheelbase | 129 inches
327 cm |
Length | 253.6 inches
644 cm |
Width | 96 inches*Width over fenders.
243 cm |
144.3 inches*Width over 18.4x38 duals.
366 cm | |
Shipping weight | 25011 lbs
11344 kg |
Max weight | 34000 lbs
15422 kg |
Steiger Cougar IV CM-280 Height | |
|---|---|
94.8 inches
240 cm | |
Cab | 134.8 inches
342 cm |
Exhaust | 155.8 inches
395 cm |
Photos
Steiger Cougar IV CM-280 tractor photo
