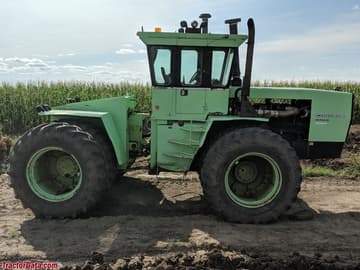

steiger cougar iv cs 280
 | 1984 - 1985
IV SeriesFour-wheel Drive (4WD) tractor | 1984 - 1985 | IV Series | Four-wheel Drive (4WD) tractor |
|---|---|---|---|---|
1984 - 1985 | ||||
IV Series | ||||
Four-wheel Drive (4WD) tractor | ||||
1984 - 1985 | |
|---|---|
IV Series | |
Four-wheel Drive (4WD) tractor |
Production | |
|---|---|
Manufacturer | Steiger |
Four-wheel Drive (4WD) tractor | |
Built in Fargo, North Dakota, USA | |
Variants | |
|---|---|
CS-280 | Cat Engine |
KS-280 | Cummins engine |
Steiger Cougar IV CS-280 Engine | |
|---|---|
Caterpillar 14.6L 6-cyl diesel | |
Fuel tank | 225 gal
851.6 L |
Engine details ...  | |
Steiger Cougar IV CS-280 Transmission | |
|---|---|
10-speed power shift | |
Transmission details ...  |
Steiger Cougar IV CS-280 Power | |
|---|---|
Engine | 280 hp
208.8 kW |
Drawbar (claimed) | 236 hp
176.0 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | outboard planetary |
Articulated power steering | |
Hydraulic disc brakes | |
Cab standard with air-conditioning. | |
Photos | |
|---|---|
 | |
Steiger Cougar IV CS-280 photos...  |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2250 psi
155.1 bar |
Valves | 3 to 5 |
Pump flow | 31.3 gpm
118.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | III OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 132.5 inches
336 cm |
Weight | 26252 lbs
11907 kg |
Front tire | 18.4-38 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Batteries | 4 |
Battery volts | 12 |
References | |
|---|---|
 | |
Cougar IV Steigermatic published in 1983 | |
The Steiger Line published in 1983 | |
Cougar IV/Panter IV Steigermatic published in 1984 |
