Steyr 360 Kompakt

The Steyr 360 Kompakt is a tractor produced by Steyr. It is equipped with a 178.8 ci 2.9 L engine. The listed engine power is Diesel (listed): 59 hp / 44.0 kW. Transmission: STEYR Power-2. Operating weight: 6,063 lbs 2750 kg.

Engine Power

Diesel (listed): 59 hp / 44.0 kW

Fuel & Capacities

19.8 gal 74.9 L

Transmission

STEYR Power-2

Operating Weight

6,063 lbs 2750 kg

Overview

	2003 - 2008 Kompakt SeriesUtility tractor Kompakt Series Utility tractor

Production
Manufacturer	Steyr
Utility tractor

Steyr 360 Engine
Iveco 2.9L 3-cyl diesel
Fuel tank	19.8 gal 74.9 L
Engine details ...

Steyr 360 Power
Engine	59 hp 44.0 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Valves	4
Total flow	12.4 gpm 46.9 lpm
	16.9 gpmOptOptional 64.0 lpm

Tractor hitch
Rear lift	5,886 lbs 2669 kg
Front lift	3,417 lbs 1549 kg

Power Take-off (PTO)
Rear PTO Type	540/540E/1000
Front PTO Type	1000

Dimensions & Tires
Wheelbase	81.3 inches 206 cm
Weight	6,063 lbs 2750 kg
Front tire	11.2R24
Rear tire	12.4R36
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator

Engine

Engine Detail — 178.8 ci / 2.9 L Diesel

Manufacturer	Iveco 8035
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	178.8 ci 2.9 L
Bore/Stroke	4.09x4.53 inches 104 x 115 mm
Emissions	Tier II
Power	59 hp 44.0 kW
Rated RPM	2300
Torque	125.4 lb-ft 170.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed
32-speed

Transmission — STEYR Synchro Shift

Transmission	STEYR Synchro Shift
Gears	16 forward and reverse

Transmission — STEYR Power-2

Transmission	STEYR Power-2
Gears	32 forward and 16 reverse

Dimensions

Steyr 360 Tires
Ag front	11.2R24
Ag rear	12.4R36

Dimensions
Wheelbase	81.3 inches 206 cm
Length	135.4 inches 343 cm
Width	90.5 inches 229 cm
Weight	6,063 lbs 2750 kg

Photos

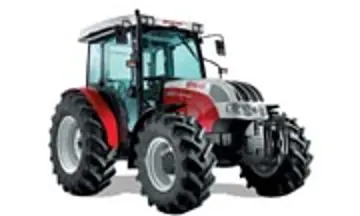

Steyr 360 Kompakt tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Steyr 360 Kompakt based on its 59 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Steyr 360 Kompakt.

Estimated Continuous Field Runtime: 6.5 hrs

Approximately 6.5 hours of continuous field operation at ~75% rated power on a full tank (19.8 gal / 75 L).

Estimated 75% Load Fuel Burn~3.1 gal/hr (11.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
