Suzue M1101

The Suzue M1101 is a tractor produced by Suzue. It is equipped with a 33.2 ci 0.5 L engine. The listed engine power is Diesel (listed): 11 hp / 8.2 kW. Transmission: 6 forward and 2 reverse.

Engine Power
Diesel (listed): 11 hp / 8.2 kW
Fuel & Capacities
Diesel
Transmission
6 forward and 2 reverse

Overview

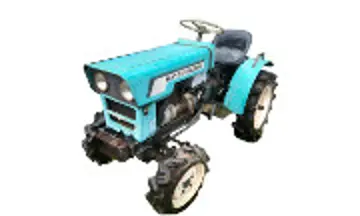

Suzue M1101 tractor photo
Compact Utility tractor
Compact Utility tractor
Production
Manufacturer
Suzue
Compact Utility tractor
Suzue M1101 Engine
Mitsubishi 0.5L 2-cyl diesel
Engine details ...
Suzue M1101 Transmission
6-speed gear
Transmission details ...
Suzue M1101 Power
Engine
11 hp 8.2 kW
Mechanical
Two- or four-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Full dimensions and tires ...

Engine

Engine Detail — 33.2 ci / 0.5 L Diesel

Manufacturer
Mitsubishi KE55
Fuel Type
Diesel
Configuration
2-cylinder, liquid-cooled inline
Displacement
33.2 ci 0.5 L
Bore/Stroke
2.68x2.91 inches 68 x 74 mm
Power
11 hp 8.2 kW
Starter volts
12

Transmission

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
Three gears, plus reverse, in two ranges.

Dimensions

Suzue M1101 Tires
Dimensions

Photos

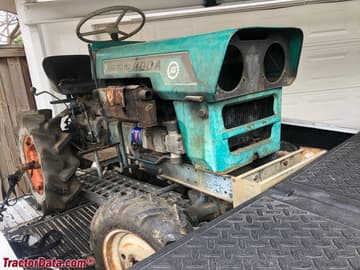

NODA NR1101D version of the M1101.

NODA NR1101D version of the M1101.

NODA NR1101D version of the M1101.

NODA NR1101D version of the M1101.

NODA NR1101D version of the M1101.

NODA NR1101D version of the M1101.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Suzue M1101.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Suzue M1101 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Suzue M1101.

Converted Equivalents:

Horsepower (HP)11 hp
Kilowatts (kW)8.2 kW
Metric Horsepower (PS / CV)11.2 PS
