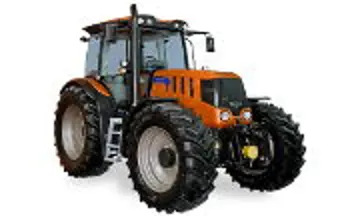

terrion atm 4180
 | 2010 -
ATM 4000 SeriesRow-Crop tractor | 2010 - | ATM 4000 Series | Row-Crop tractor |
|---|---|---|---|---|
2010 - | ||||
ATM 4000 Series | ||||
Row-Crop tractor | ||||
2010 - | |
|---|---|
ATM 4000 Series | |
Row-Crop tractor |
Production | |
|---|---|
Manufacturer | Terrion |
Row-Crop tractor | |
Built in Tambov, Russia | |
Terrion ATM 4180 Engine | |
|---|---|
Deutz 6.1L 6-cyl diesel | |
Fuel tank | 105.7 gal
400.1 L |
Engine details ...  | |
Terrion ATM 4180 Transmission | |
|---|---|
40-speed four-speed power shift | |
Transmission details ...  |
Terrion ATM 4180 Power | |
|---|---|
Engine | 180 hp
134.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Cab standard with air-condtioning. |
Hydraulics | |
|---|---|
Valves | 4 |
Pump flow | 29.1 gpm
110.1 lpm |
| 38.3 gpmOptOptional
145.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | III |
Rear lift | 20680 lbs
9380 kg |
Front Hitch | IIIN OptOptional |
Front lift | 8543 lbs
3875 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540/750/1000 |
Front PTO | optional |
Front PTO Type | 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 113 inches
287 cm |
Weight | 14770 lbs
6699 kg |
Front tire | 540/65R34 |
Rear tire | 650/65R42 |
Full dimensions and tires ...  | |
