Toro 14-38Z 74301
The Toro 14-38Z 74301 is a tractor produced by Toro Lawn Tractors. It is equipped with a 465 cc 28.4 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Hydro-Gear.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear
Overview
 | 2003 - 2004
TimeCutter Z SeriesZero-turn mower
TimeCutter Z Series
Zero-turn mower |
|---|
Production | |
|---|---|
Manufacturer | Toro |
Zero-turn mower | |
Original price was $2,899 in 2004 | |
Toro 14-38Z Engine | |
|---|---|
14HP Briggs & Stratton 465cc 1-cyl gasoline | |
Engine details ...  |
Toro 14-38Z Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Front tire | 10x4 |
Rear tire | 18x6.5 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 465 cc / 28.4 ci Gasoline
Manufacturer | Briggs & Stratton 280H07 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.4 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Toro 14-38Z Tires | |
|---|---|
Lawn/turf front | 10x4 |
Lawn/turf rear | 18x6.5 |
Dimensions | |
|---|---|
Front axle | Caster |
Attachments
38" Mower deck | |
|---|---|
Type | mid-mount Toro |
2-blade with manual lift | |
Cutting width | 38 inches
96 cm |
Cut height | 1.5 to 4.5 inch
3 to 11 cm |

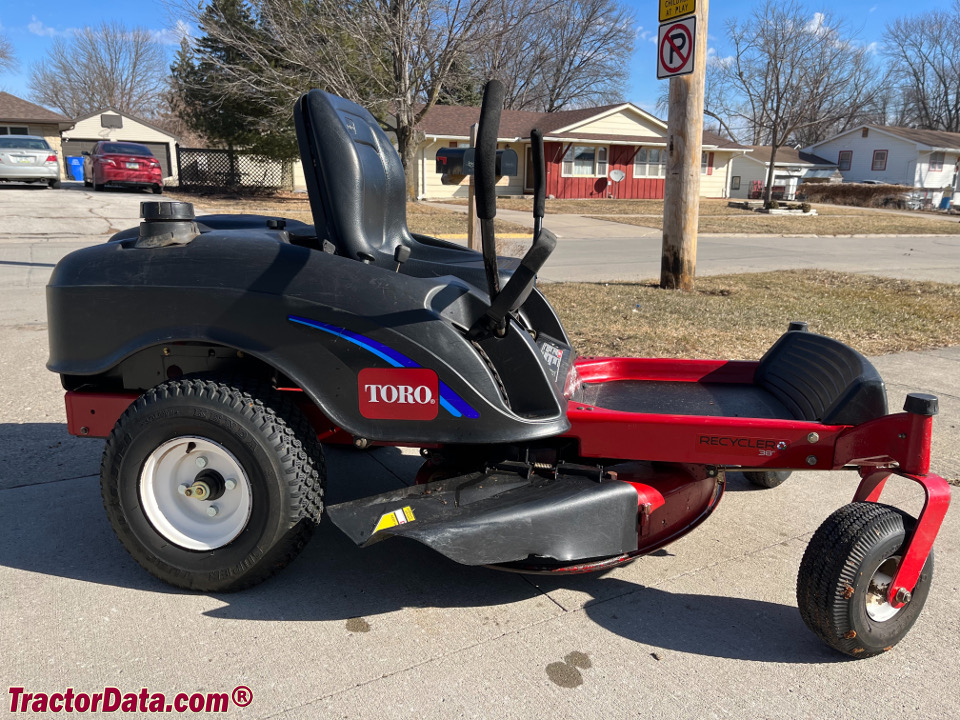

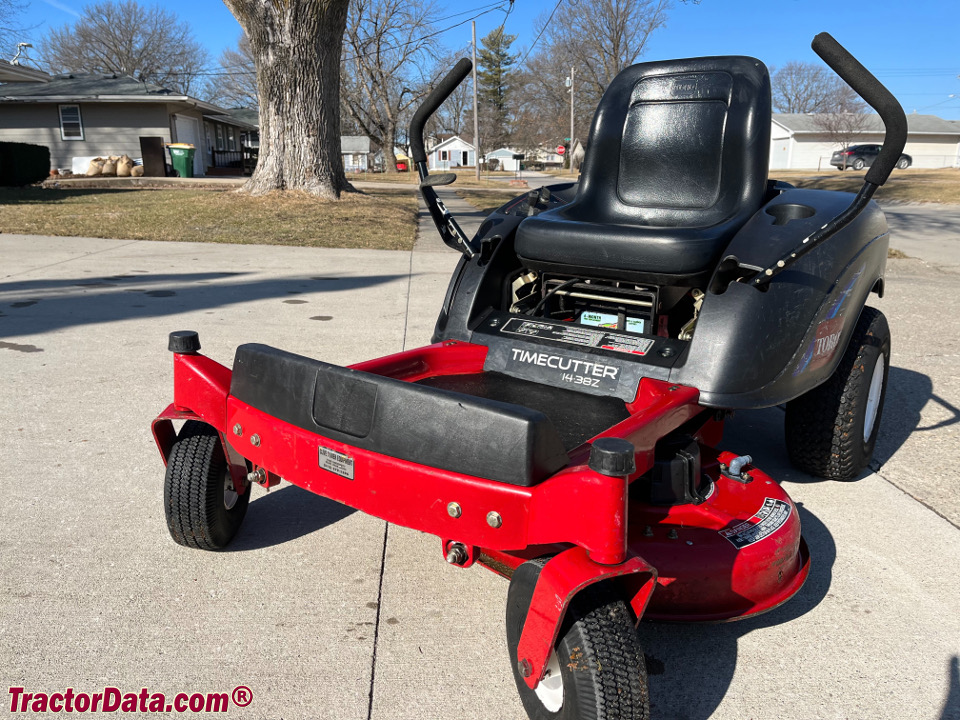

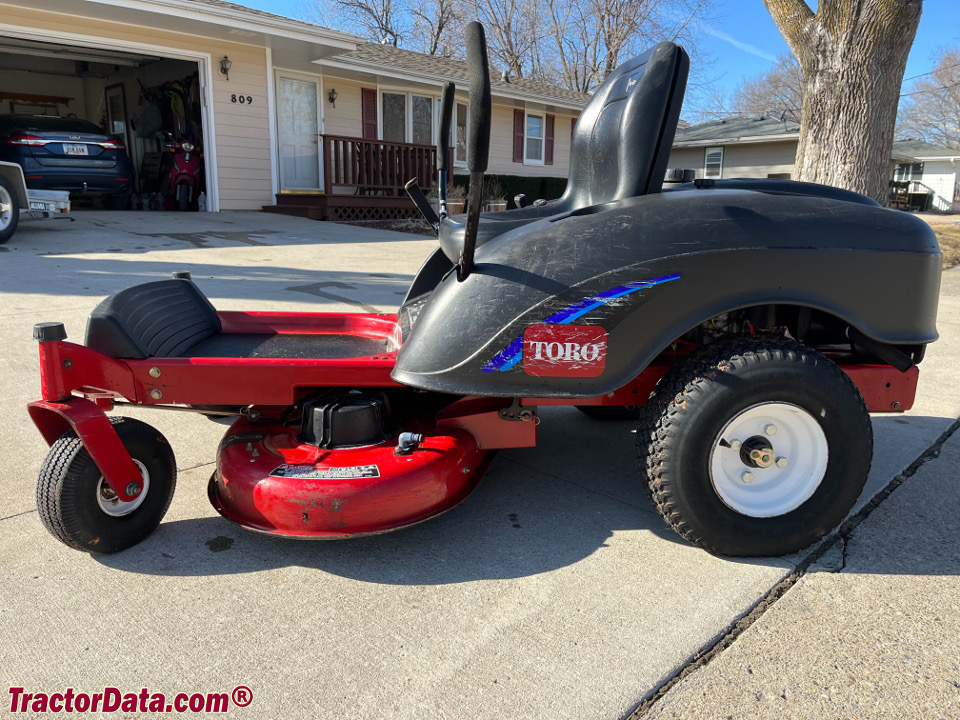

Photos
Toro 14-38Z 74301
Toro 14-38Z 74301
Toro 14-38Z 74301
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro 14-38Z 74301.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Toro Lawn Tractors Toro 14-38Z 74301 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro 14-38Z 74301.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
