Toro Wheel Horse 314-8

The Toro Wheel Horse 314-8 is a tractor produced by Toro Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW; Gasoline (gross): 14 hp / 10.4 kW. Transmission: Uni-Drive. Operating weight: 624 lbs 283 kg.

Overview

	1993 - 2001 Classic 300 SeriesGarden tractor Classic 300 Series Garden tractor

Production
Manufacturer	Toro
Garden tractor

Variants
314-8	gear
314-H	hydrostatic

Toro 314-8 Transmission
6-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Open operator station.

Dimensions & Tires
Wheelbase	45.5 inches 115 cm
Weight	624 lbs 283 kg
Front tire	16x6.50
Rear tire	23x.9.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	210
Battery volts	12

References
Lawn and Garden Tractors published in 1996, by Toro
Lawn and Garden Tractors published in 1998, by Toro
Lawn and Garden Tractors published in 1999, by Toro

Engine

Engine options
14HP Kohler 512cc 1-cyl gasoline
14HP Kohler 398cc 1-cyl gasoline

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler Magnum M14
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Original engine, the Kohler Magnum was used through the 1997 model year, tractor serial number 7999999.
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Engine Detail — 398 cc / 24.3 ci Gasoline

Manufacturer	Kohler Command CH14
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
The Kohler Command replaced the Magnum for the 1998 model year, tractor serial number 8900001.
Displacement	398 cc 24.3 ci
Bore/Stroke	3.43x2.64 inches 87 x 67 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Uni-Drive

Transmission	Uni-Drive
Type	belt-driven gear
Gears	6 forward and 2 reverse

Dimensions

Toro 314-8 Tires
Lawn/turf front	16x6.50
Lawn/turf rear	23x.9.50

Dimensions
Wheelbase	45.5 inches 115 cm
Length	65 inches 165 cm
Width	36.5 inches 92 cm
Weight	624 lbs 283 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

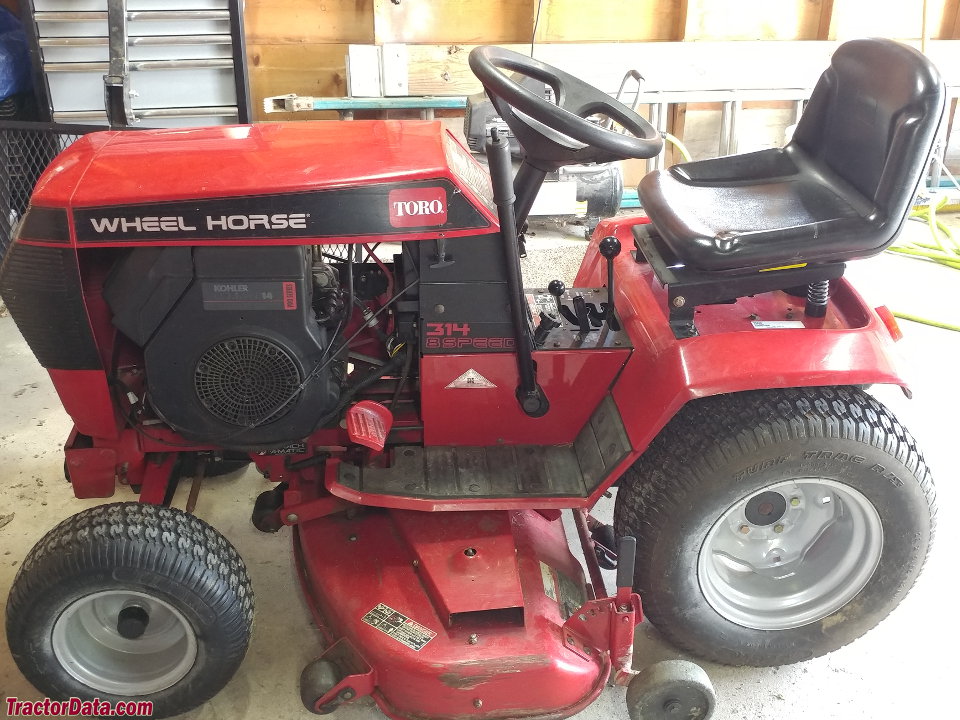

Toro Wheel Horse 314-8
