Toro Wheel Horse 314-H

The Toro Wheel Horse 314-H is a tractor produced by Toro Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Eaton. Operating weight: 622 lbs 282 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
4.25 gal 16.1 L
Transmission
Eaton
Operating Weight
622 lbs 282 kg

Overview

Toro Wheel Horse 314-H tractor photo
1993 - 1997 Classic 300 SeriesGarden tractor Classic 300 Series Garden tractor
Production
Manufacturer
Toro
Garden tractor
Variants
314-8
gear
314-H
hydrostatic
Toro 314-H Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank
4.25 gal 16.1 L
Engine details ...
Toro 314-H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Wheelbase
45.5 inches 115 cm
Weight
622 lbs 282 kg
Front tire
15x6.00-6
Rear tire
23x9.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References

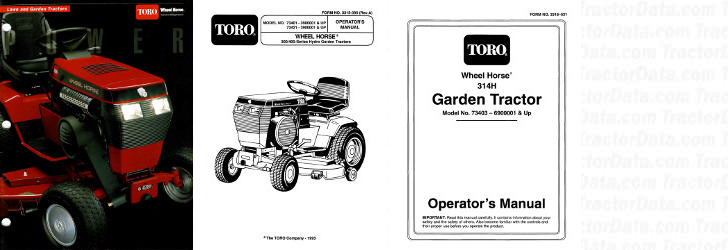

Wheel Horse 314-H references literature
Lawn and Garden Tractors published in 1996, by Toro
Wheel Horse 300/400-Series Hydro Garden Tractors (3315-390) published in 1993
Wheel Horse 314H Garden Tractor (3318-531) published in 1996

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer
Kohler M14S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
512 cc 31.27 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power (gross)
14 hp 10.4 kW
Starter
electric
Starter volts
12
Sparkplug
Champion RH-10
Sparkplug gap
0.025 inches 0.635 mm
Oil capacity
2.0 qts*Early editions of the manual state 2.5 US quarts, later editions state 2.0. 1.9 L
Oil change
25 h

Transmission

Transmission — Eaton

Transmission
Eaton
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
Oil type
SAE 10W-30
Oil change
200 h
Wheel Horse 314-H belt-driven hydrostatic speeds

Dimensions

Toro 314-H Tires
Lawn/turf front
15x6.00-6
Lawn/turf rear
23x9.50-12
Dimensions
Wheelbase
45.5 inches 115 cm
Length
65 inches 165 cm
Width
36.5 inches 92 cm
Height (steering wheel)
42.5 inches 107 cm
Weight
622 lbs 282 kg

Attachments

Attachment overview
36" mid-mount mower deck
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

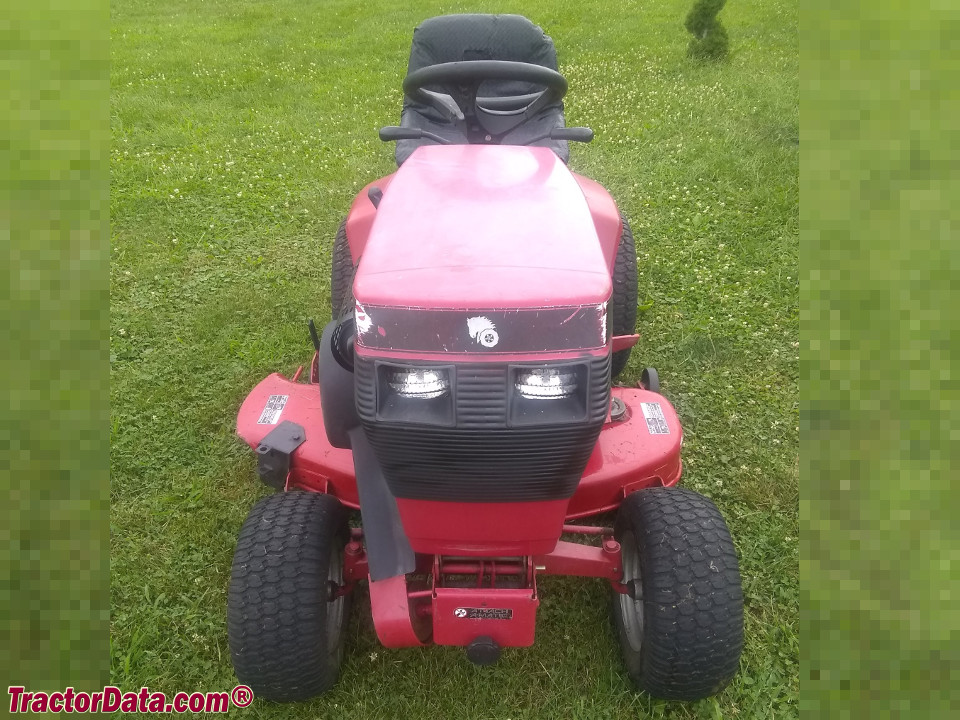

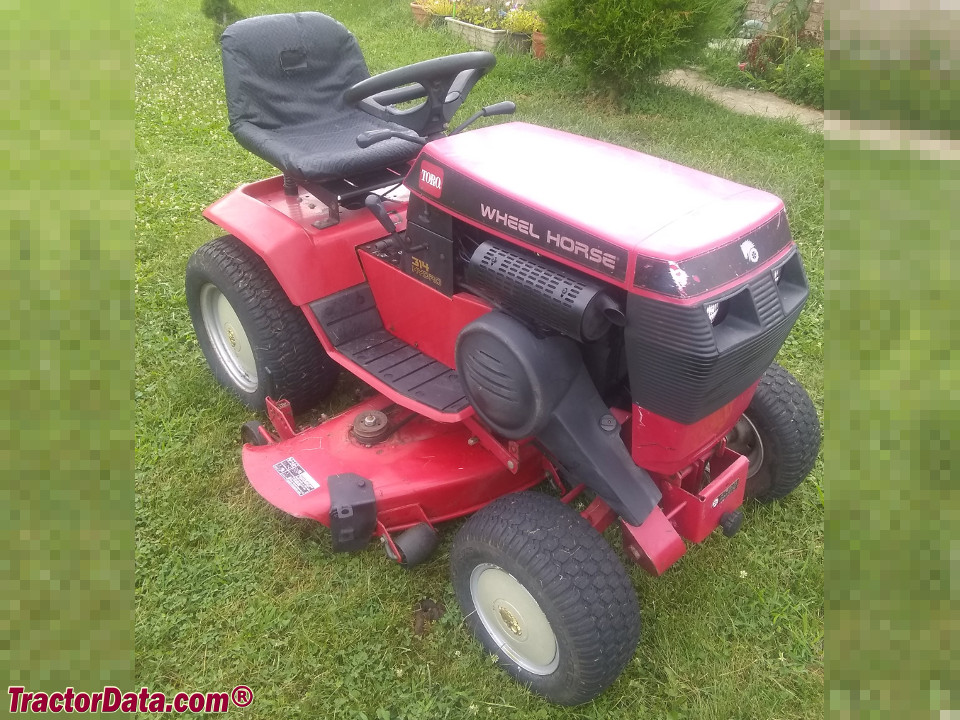

Toro Wheel Horse 314-H

Toro Wheel Horse 314-H

Toro Wheel Horse 314-H

Toro Wheel Horse 314-H

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Toro Lawn Tractors Toro Wheel Horse 314-H.

Estimated Continuous Field Runtime: 5.9 hrs

Approximately 5.9 hours of continuous field operation at ~75% rated power on a full tank (4.3 gal / 16.1 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Toro Lawn Tractors Toro Wheel Horse 314-H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Toro Lawn Tractors Toro Wheel Horse 314-H.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
