Troy-Bilt 3312HR 12 Hydro
The Troy-Bilt 3312HR 12 Hydro is a tractor produced by Troy Bilt Lawn Tractors. It is equipped with a 465 cc 28.42 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: Eaton 750. Operating weight: 610 lbs 276 kg.
Overview
 | 1990 - 1991
Suburban SeriesLawn tractor
Suburban Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Troy-Bilt |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Original price was $2,999 in 1990 | |
Variants | |
|---|---|
3312GR | gear |
3312HR | hydrostatic |
Troy-Bilt 3312HR Engine | |
|---|---|
12HP Briggs & Stratton 465cc 1-cyl gasoline | |
Fuel tank | 5 gal
18.9 L |
Engine details ...  | |
Troy-Bilt 3312HR Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Weight | 610 lbs
276 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.00-10 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 465 cc / 28.42 ci Gasoline
Manufacturer | Briggs & Stratton 281707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 465 cc
28.42 ci |
Bore/Stroke | 3.44x3.06 inches
87 x 78 mm |
Power | 12 hp
8.9 kW |
Starter | electric |
Starter volts | 12 |

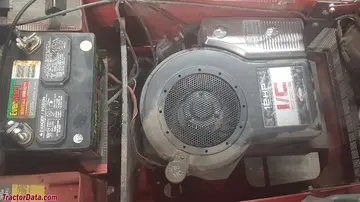

Troy-Bilt 3312HR Engine | |
|---|---|
 | |
Image courtesy of Cody Bryant |
Transmission
Transmission — Eaton 750
Transmission | Eaton 750 |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Troy-Bilt 3312HR Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.00-10 |
Dimensions | |
|---|---|
Wheelbase | 45.5 inches
115 cm |
Length | 69 inches
175 cm |
Width | 34.5 inches
87 cm |
Height | 42.5 inches
107 cm |
Shipping weight | 610 lbs*Weight with 36-inch mower deck.
276 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
Snowblower | |
Blade |
36" Mower deck | |
|---|---|
Type | mid-mount Troy-Bilt |
Cutting width | 36 inches
91 cm |
Photos

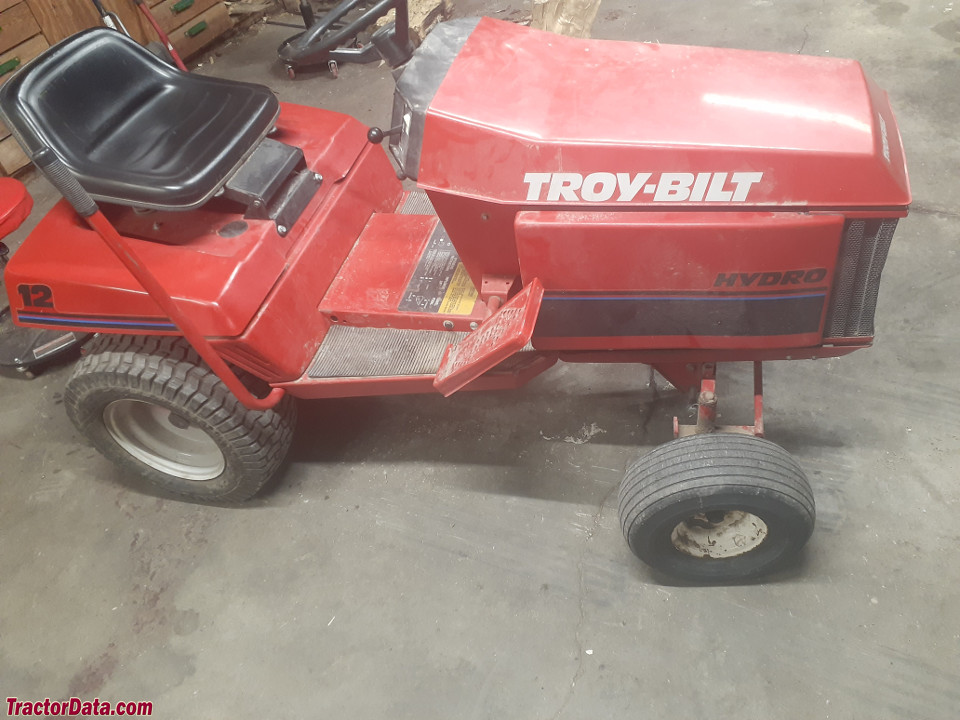

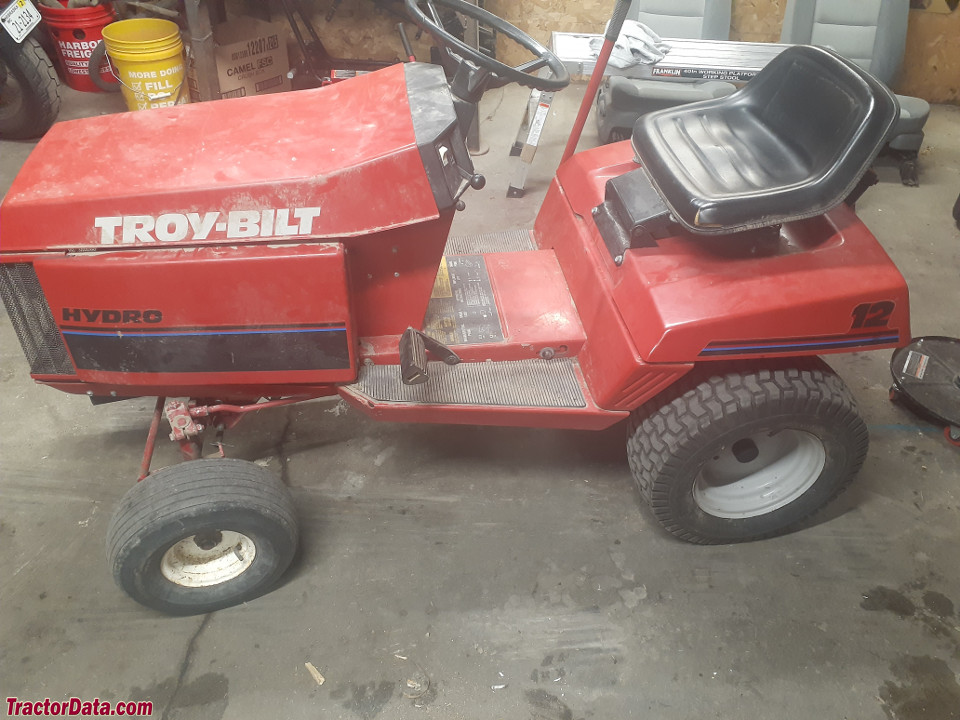

Troy-Bilt 3312HR 12 Hydro
Troy-Bilt 3312HR 12 Hydro
Troy-Bilt 3312HR 12 Hydro

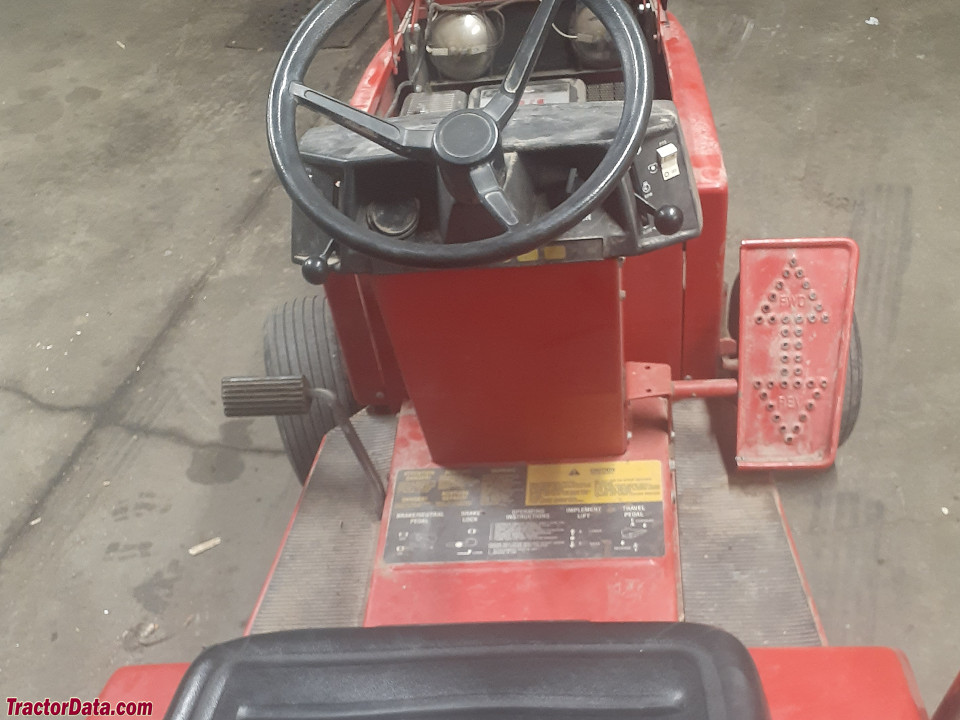

Troy-Bilt 3312HR operator station and controls.

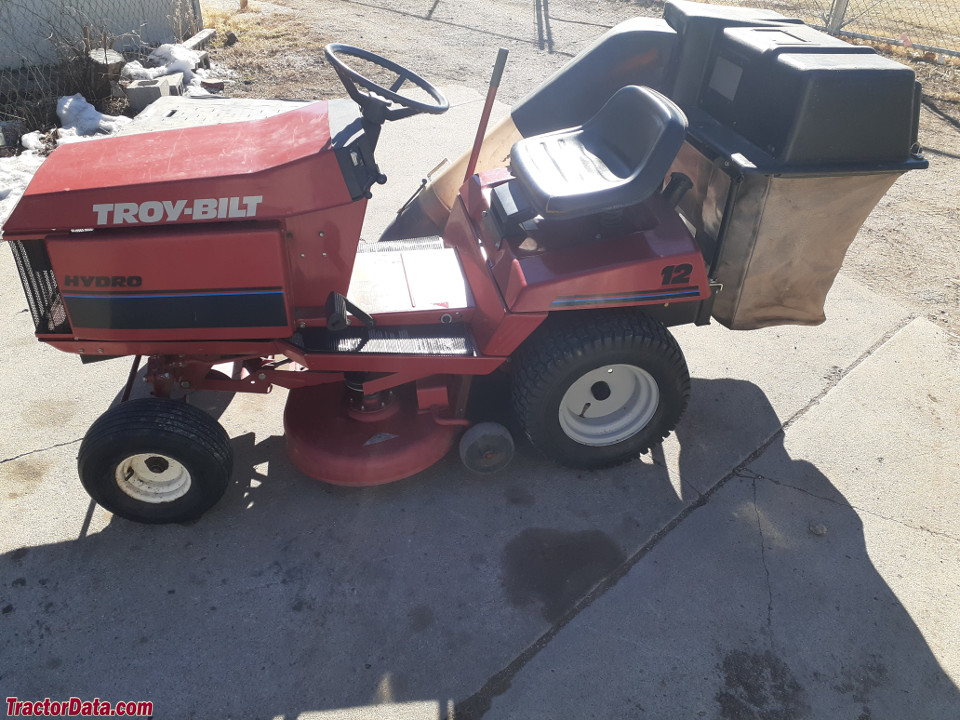

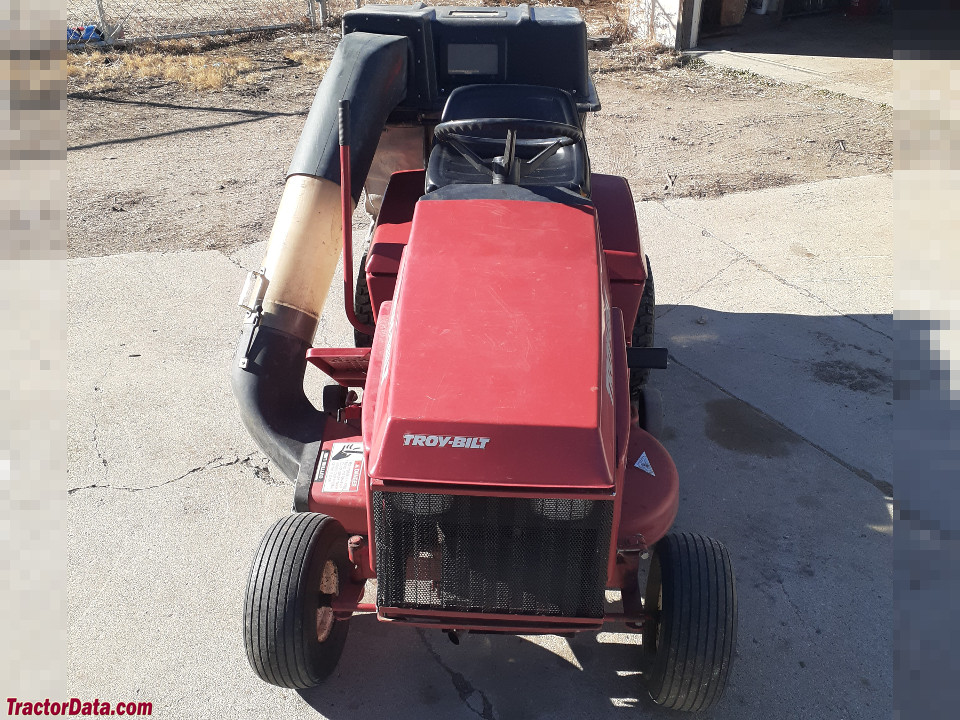

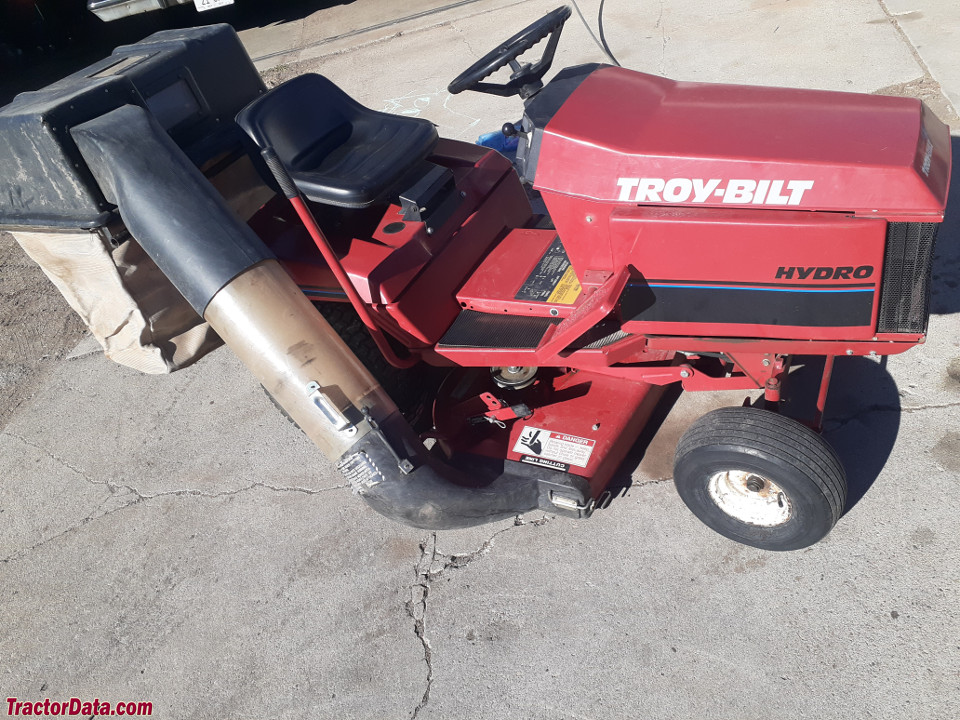

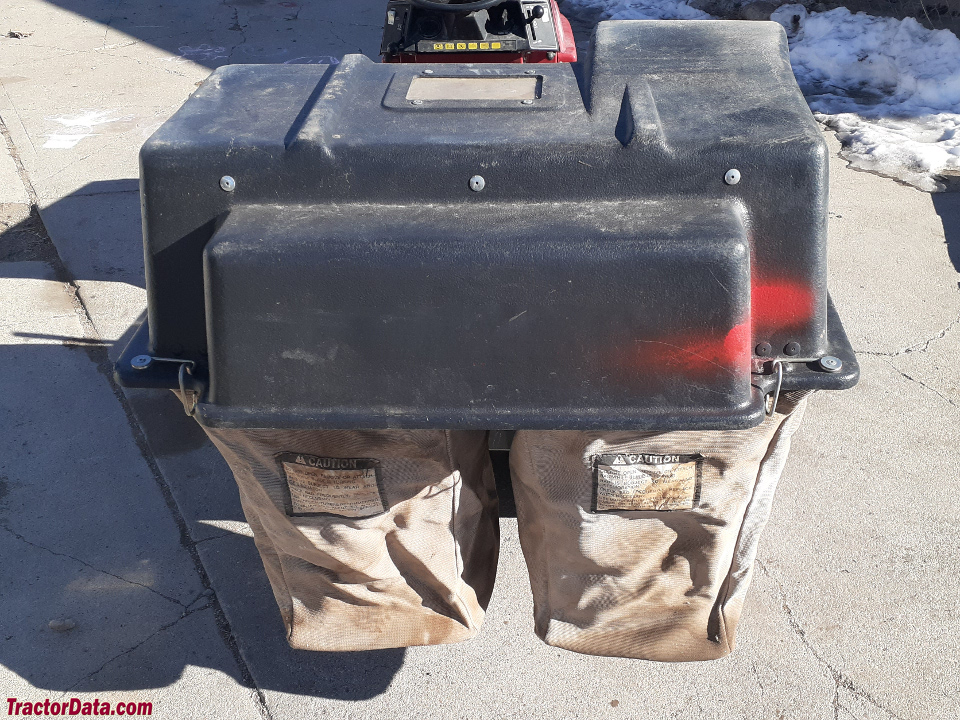

Troy-Bilt 3312HR with grass bagger.
Troy-Bilt 3312HR with grass bagger.
Troy-Bilt 3312HR with grass bagger.
Troy-Bilt 3312HR with grass bagger.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Troy Bilt Lawn Tractors Troy-Bilt 3312HR 12 Hydro.
Estimated Continuous Field Runtime: 8 hrs
Approximately 8 hours of continuous field operation at ~75% rated power on a full tank (5 gal / 18.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Troy Bilt Lawn Tractors Troy-Bilt 3312HR 12 Hydro Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Troy Bilt Lawn Tractors Troy-Bilt 3312HR 12 Hydro.
Converted Equivalents:
